Manufacturer Part Number: | MIC23159YML-TR |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 1V 2 Output 2A 20-VFQFN Exposed Pad, 20-MLF® |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MIC23159YML-TR Datasheet |
Internal Part Number | 898-MIC23159YML-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Wafer Size Update 02/Sep/2015 | |
PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Microchip Technology | |
Series | HyperLight Load® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 2.7V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 1V | |
Voltage - Output (Max) | 3.3V | |
Current - Output | 2A | |
Frequency - Switching | 3MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

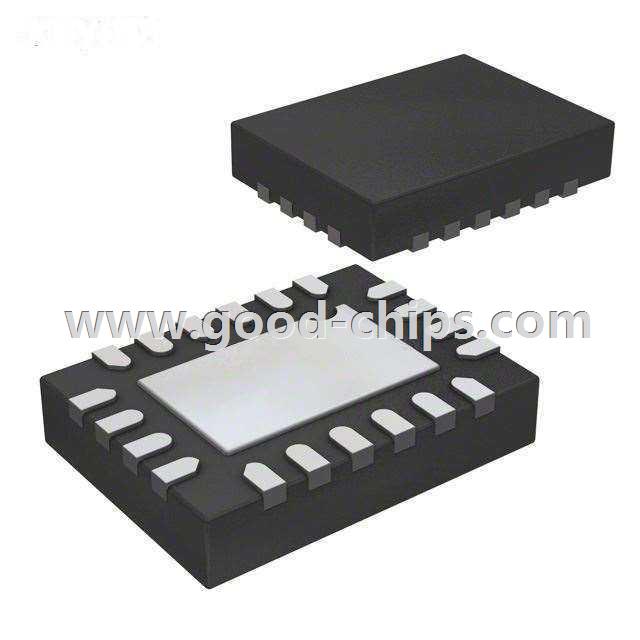

Package / Case | 20-VFQFN Exposed Pad, 20-MLF® | |
Supplier Device Package | 20-MLF® (3x4) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MIC23159YML-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MIC23159YML-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MIC23159YML-TR is new and unused, you can buy MIC23159YML-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MIC23159YML-TR.
