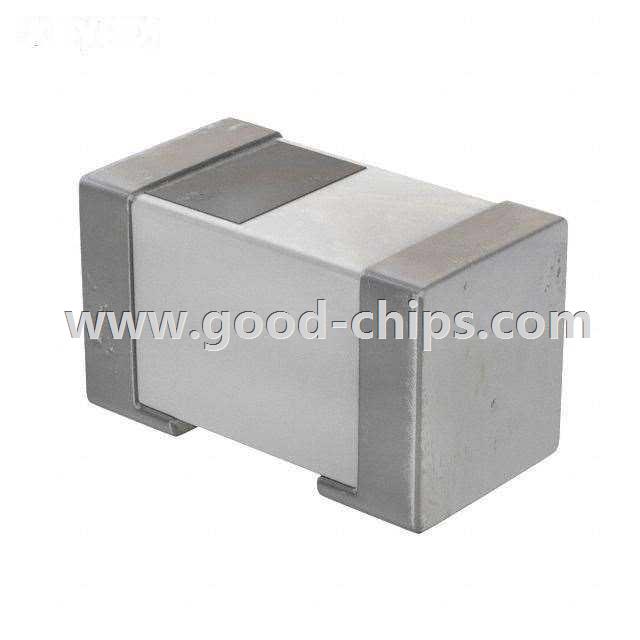

 MHQ Series.jpg)
| Manufacturer Part Number: | MHQ0603P5N1HT000 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 5.1nH Unshielded Multilayer Inductor 350mA 400 mOhm Max 0201 (0603 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MHQ0603P5N1HT000 Datasheet |
| Internal Part Number | 898-MHQ0603P5N1HT000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Frequency Inductor Family | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MHQ Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | MHQ-P | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | Non-Magnetic | |
| Inductance | 5.1nH | |
| Tolerance | ±3% | |
| Current Rating | 350mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 400 mOhm Max | |
| Q @ Freq | 16 @ 500MHz | |
| Frequency - Self Resonant | 5.5GHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 500MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0201 (0603 Metric) | |
| Size / Dimension | 0.026" L x 0.014" W (0.65mm x 0.35mm) | |
| Height - Seated (Max) | 0.016" (0.40mm) | |
| Standard Package | 15,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MHQ0603P5N1HT000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MHQ0603P5N1HT000 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MHQ0603P5N1HT000 is new and unused, you can buy MHQ0603P5N1HT000 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MHQ0603P5N1HT000.
