| Manufacturer Part Number: | MH18-10FLX-BOTTLE |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

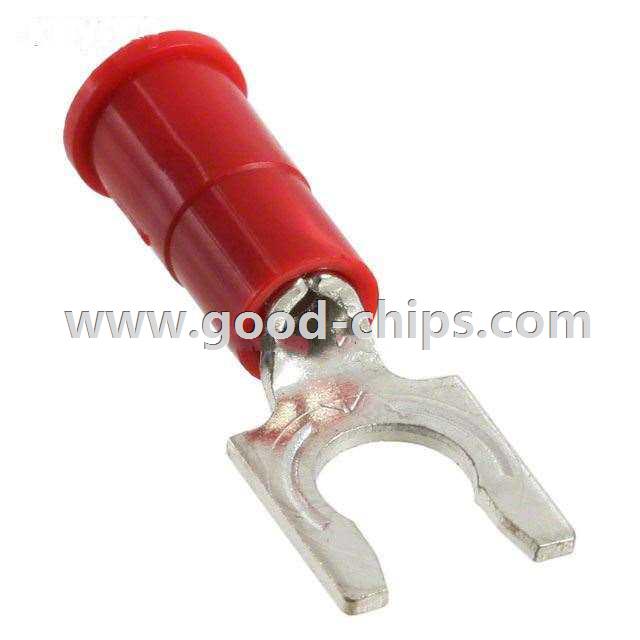

| Description: | Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MH18-10FLX-BOTTLE Datasheet |
| Internal Part Number | 898-MH18-10FLX-BOTTLE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Connectors, Interconnects | ||
| Family | Terminals - Spade Connectors | |
| Manufacturer | 3M | |
| Series | Scotchlok™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Spring, Snap | |
| Stud/Tab Size | 10 Stud | |
| Width - Outer Edges | 0.320" (8.13mm) | |
| Length - Overall | 1.000" (25.40mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 18-22 AWG | |
| Insulation | Insulated with Heat Shrink | |
| Features | Brazed Seam | |
| Color | Red | |
| Contact Finish | Tin | |
| Contact Material | Copper, ETP | |
| Insulation Diameter | - | |
| Material - Insulation | Polyolefin | |
| Length - Ring Center to Termination | 0.150" (3.81mm) | |
| Length - Termination | 0.610" (15.49mm) | |
| Tongue Inside Opening | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MH18-10FLX-BOTTLE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MH18-10FLX-BOTTLE is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MH18-10FLX-BOTTLE is new and unused, you can buy MH18-10FLX-BOTTLE 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MH18-10FLX-BOTTLE.
