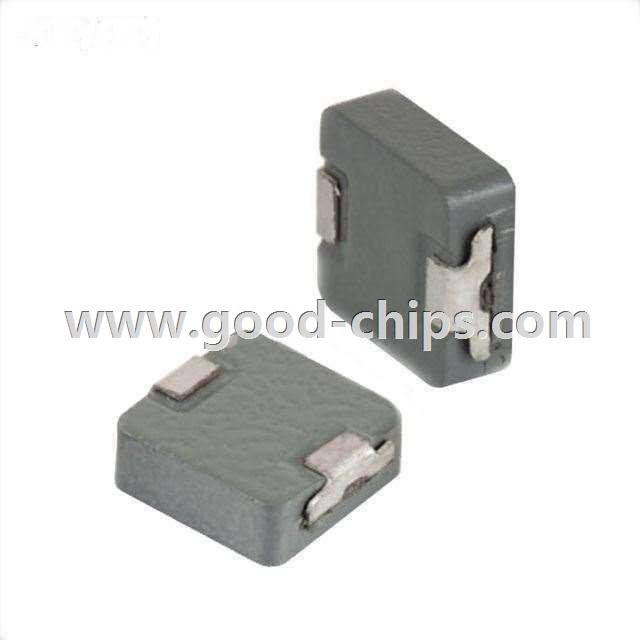

Manufacturer Part Number: | MGV05031R5M-10 |
---|---|
Manufacturer: | Laird-Signal Integrity Products |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1.5µH Shielded Wirewound Inductor 7.2A 20.7 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MGV05031R5M-10 Datasheet |
Internal Part Number | 898-MGV05031R5M-10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MGV Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Laird-Signal Integrity Products | |
Series | MGV | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | - | |
Inductance | 1.5µH | |
Tolerance | ±20% | |
Current Rating | 7.2A | |
Current - Saturation | 11A | |
Shielding | Shielded | |
DC Resistance (DCR) | 20.7 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.217" L x 0.201" W (5.50mm x 5.10mm) | |
Height - Seated (Max) | 0.129" (3.30mm) | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MGV05031R5M-10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MGV05031R5M-10 is in stock for immediate shipping now. We are the distributor of Laird-Signal Integrity Products all series components. The condition of MGV05031R5M-10 is new and unused, you can buy MGV05031R5M-10 Laird-Signal Integrity Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MGV05031R5M-10.
