| Manufacturer Part Number: | MG-B2-8.0-L |
|---|---|
| Manufacturer: | Magnasphere Corp |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9109 Pieces |
| Unit Price: | Quote by Email |

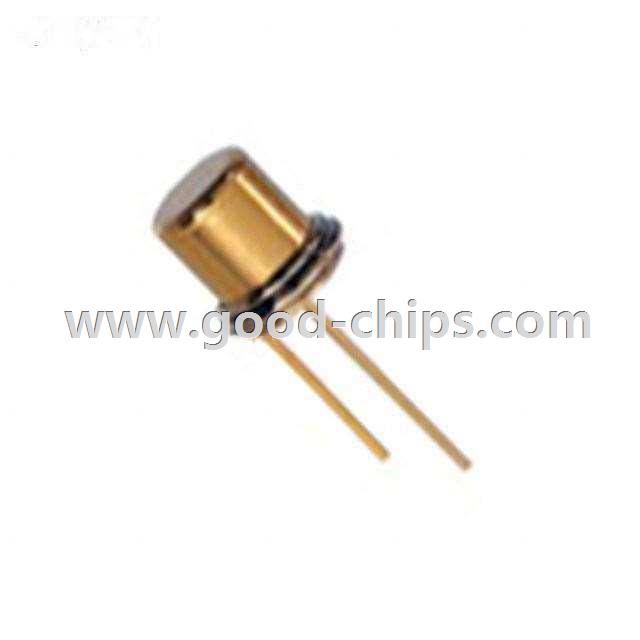

| Description: | Magnasphere® Magnetic Switch SPST-NC 23.39mm Operate Range 250mA (DC) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MG-B2-8.0-L Datasheet |
| Internal Part Number | 898-MG-B2-8.0-L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switch Technology | |
| Online Catalog | L Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Magnasphere Corp | |
| Series | L | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Magnasphere® | |
| Circuit | SPST-NC | |
| Operate Range | 23.39mm | |
| Release Range | 25.12mm | |
| Current - Switching | 250mA (DC) | |
| Voltage - Switching AC | - | |
| Voltage - Switching DC | 30V | |
| Power - Rated | - | |
| Operate Time | - | |
| Release Time | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Length - Overall | 0.723" (18.36mm) | |
| Size - Body | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | |
| Height Above Board | 0.244" (6.20mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Capacitance | 1pF | |
| Current - Carry | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MG-B2-8.0-L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MG-B2-8.0-L is in stock for immediate shipping now. We are the distributor of Magnasphere Corp all series components. The condition of MG-B2-8.0-L is new and unused, you can buy MG-B2-8.0-L Magnasphere Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MG-B2-8.0-L.
