Manufacturer Part Number: | MEM2012SC100 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 10pF 1A 0805 (2012 Metric), 6 PC Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MEM2012SC100 Datasheet |
Internal Part Number | 898-MEM2012SC100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | MEM Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | TDK Corporation | |
Series | MEM | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 3rd | |
Technology | LC (T-Type) | |
Number of Channels | 1 | |
Center / Cutoff Frequency | - | |
Attenuation Value | - | |
Resistance - Channel (Ohms) | 0.15 | |
Current | 1A | |
Values | C = 10pF | |
ESD Protection | No | |
Operating Temperature | -40°C ~ 85°C | |
Applications | Data Lines for Mobile Devices | |
Voltage - Rated | 12V | |
Mounting Type | Surface Mount | |

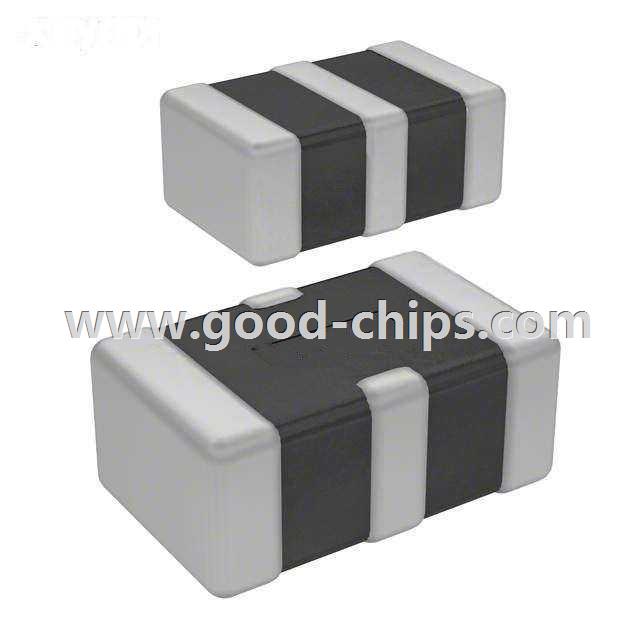

Package / Case | 0805 (2012 Metric), 6 PC Pad | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Height | 0.037" (0.95mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MEM2012SC100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MEM2012SC100 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MEM2012SC100 is new and unused, you can buy MEM2012SC100 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MEM2012SC100.
