Manufacturer Part Number: | MEA2010L75R0T001 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LC EMI Filter 2nd Order Low Pass 4 Channel 100mA 0804 (2010 Metric), Array, 10 PC Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MEA2010L75R0T001 Datasheet |
Internal Part Number | 898-MEA2010L75R0T001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | TDK Corporation | |
Series | MEA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 2nd | |
Technology | LC | |
Number of Channels | 4 | |
Center / Cutoff Frequency | 75MHz (Cutoff) | |
Attenuation Value | 20dB @ 600MHz ~ 2GHz | |
Resistance - Channel (Ohms) | - | |
Current | 100mA | |
Values | - | |
ESD Protection | No | |
Operating Temperature | -40°C ~ 85°C | |
Applications | Data Lines for Mobile Devices | |
Voltage - Rated | 10V | |
Mounting Type | Surface Mount | |

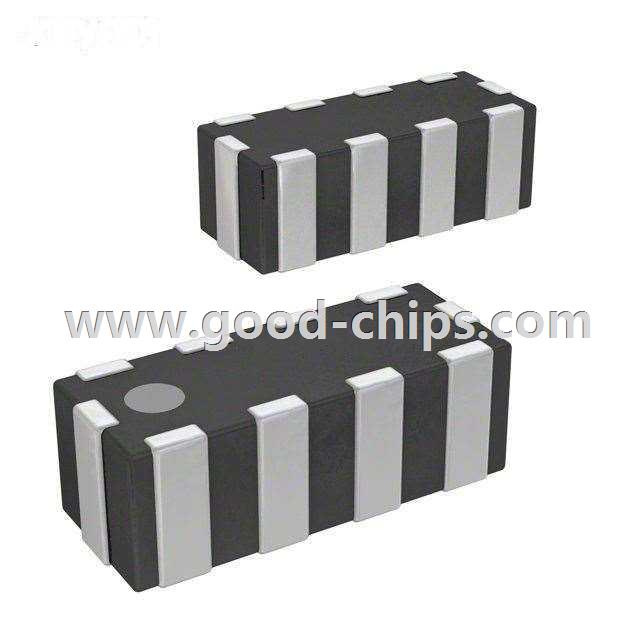

Package / Case | 0804 (2010 Metric), Array, 10 PC Pad | |
Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | |
Height | 0.032" (0.80mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MEA2010L75R0T001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MEA2010L75R0T001 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MEA2010L75R0T001 is new and unused, you can buy MEA2010L75R0T001 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MEA2010L75R0T001.
