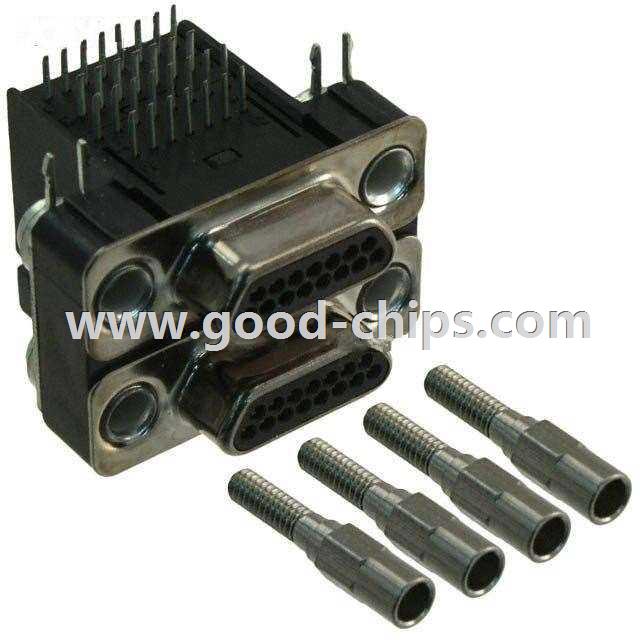

| Manufacturer Part Number: | MDSM-30PE-Z10-VR22 |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9043 Pieces |
| Unit Price: | Quote by Email |
| Description: | 15, 15 Position D-Type, Micro-D - Stacked Plug, Male Pins Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDSM-30PE-Z10-VR22 Datasheet |
| Internal Part Number | 898-MDSM-30PE-Z10-VR22 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MDSM Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | ITT Cannon, LLC | |
| Series | MDSM | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Style | D-Type, Micro-D - Stacked | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15, 15 | |
| Number of Rows | 2, 2 | |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side, Female Screwlock (2-56) | |
| Termination | Solder | |
| Features | Board Lock, Shielded | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 1.8A, 2.5A | |
| Housing Material | Thermoplastic | |
| Color | - | |
| Standard Package | 22 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDSM-30PE-Z10-VR22 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDSM-30PE-Z10-VR22 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of MDSM-30PE-Z10-VR22 is new and unused, you can buy MDSM-30PE-Z10-VR22 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDSM-30PE-Z10-VR22.
