Manufacturer Part Number: | MDSM-25PE-Z10-VR17 |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | D-Sub Connectors |
Available Quantity: | 9195 Pieces |
Unit Price: | Quote by Email |

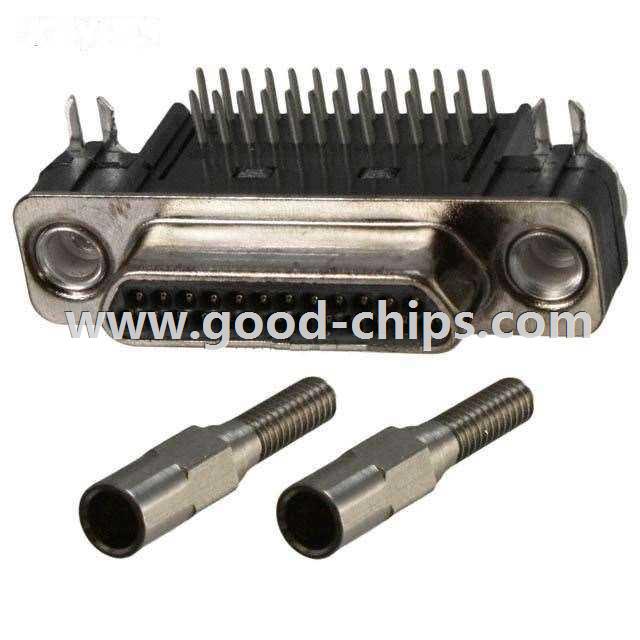

Description: | 25 Position D-Type, Micro-D Plug, Male Pins Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MDSM-25PE-Z10-VR17 Datasheet |
Internal Part Number | 898-MDSM-25PE-Z10-VR17 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MDSM Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | ITT Cannon, LLC | |
Series | MDSM | |
Packaging | Tube | |
Part Status | Active | |
Connector Style | D-Type, Micro-D | |
Connector Type | Plug, Male Pins | |
Number of Positions | 25 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Mating Side, Female Screwlock (2-56) | |
Termination | Solder | |
Features | Board Lock, Shielded | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | 2.5A | |
Housing Material | Thermoplastic | |
Color | - | |
Standard Package | 17 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MDSM-25PE-Z10-VR17 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MDSM-25PE-Z10-VR17 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of MDSM-25PE-Z10-VR17 is new and unused, you can buy MDSM-25PE-Z10-VR17 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDSM-25PE-Z10-VR17.
