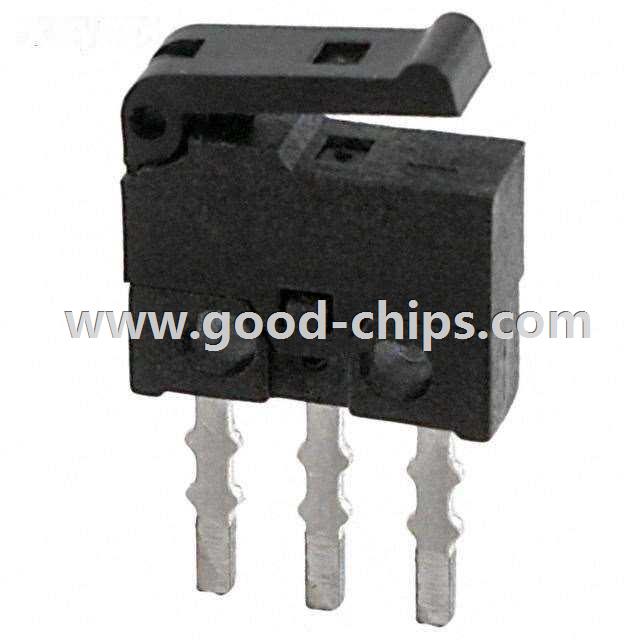

| Manufacturer Part Number: | MDS6500AL02PL |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 10383 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 300MA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDS6500AL02PL Datasheet |
| Internal Part Number | 898-MDS6500AL02PL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| Featured Product | ATCA Family of Switches | |
| 3D Model | MDS6500AL02PL.stp MDS6500AL02PL.pdf | |
| PCN Design/Specification | MDS Series 19/Sep/2013 | |
| Online Catalog | MDS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | MDS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 300mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 50gf | |
| Release Force | 3gf | |
| Pretravel | 0.100" (2.5mm) | |
| Differential Travel | - | |
| Overtravel | 0.006" (0.15mm) | |
| Operating Position | 0.276" (7.0mm) | |
| Mechanical Life | 30,000 Cycles | |
| Electrical Life | 30,000 Cycles | |
| Operating Temperature | -25°C ~ 70°C | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDS6500AL02PL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDS6500AL02PL is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of MDS6500AL02PL is new and unused, you can buy MDS6500AL02PL C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDS6500AL02PL.
