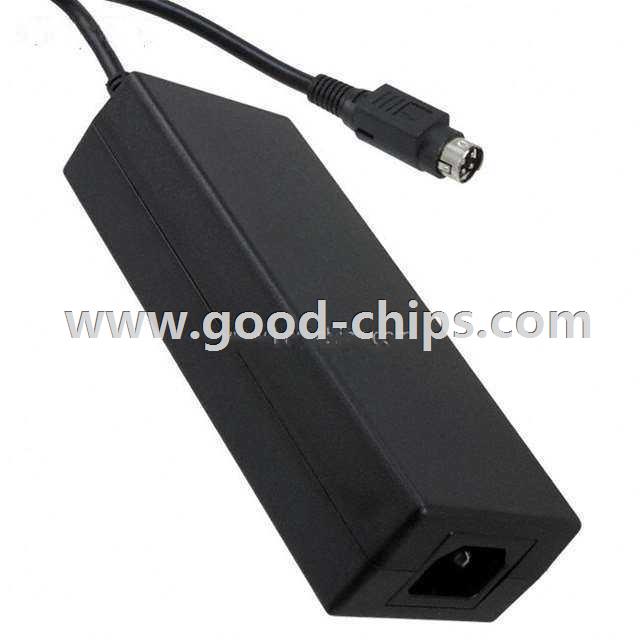

| Manufacturer Part Number: | MDS-090AAS24 BA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Desktop, Wall Adapters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24V 90W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDS-090AAS24 BA Datasheet |
| Internal Part Number | 898-MDS-090AAS24 BA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | MDS-090AASxx B CB Test Cert MDS-090AASxx B EC Declaration of Conformity MDS-090AASxx B ITE Test Cert MDS-090AASxx B UL Cert | |
| Product Training Modules | MDS Series: External Medical Power Supplies MDS Series Embedded Medical Power Supplies | |
| Featured Product | DC/DC Converters – Delta Product Groups MDS Series AC-DC Adapters Power Management Solutions | |
| Online Catalog | MDS Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Desktop, Wall Adapters | |
| Manufacturer | Delta Electronics | |
| Series | MDS | |
| Part Status | Active | |
| Region Utilized | International | |
| Form | Desktop (Class I) | |
| Input Type | Cord (Sold Separately) | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output | 24V | |
| Current - Output (Max) | 3.75A | |
| Power (Watts) | 90W | |
| No Load Power Consumption | 500mW (Max) | |
| Polarization | - | |
| Applications | ITE (Commercial), Medical | |
| Efficiency | Level V | |
| Operating Temperature | 0°C ~ 40°C | |
| Output Connector | Power DIN, 4 Pin | |
| Size / Dimension | 5.91" L x 2.36" W x 1.38" H (150.0mm x 60.0mm x 35.0mm) | |
| Approvals | - | |
| Power (Watts) - Max | 90W | |
| Input Connector | IEC 320-C14 | |
| Cord Length | 47.2" (1.20m) | |
| Weight | 0.001 KG | |
| Standard Package | 20 | |
| Application | Email for details | |
| Replacement Part | MDS-090AAS24 BA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDS-090AAS24 BA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of MDS-090AAS24 BA is new and unused, you can buy MDS-090AAS24 BA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDS-090AAS24 BA.
