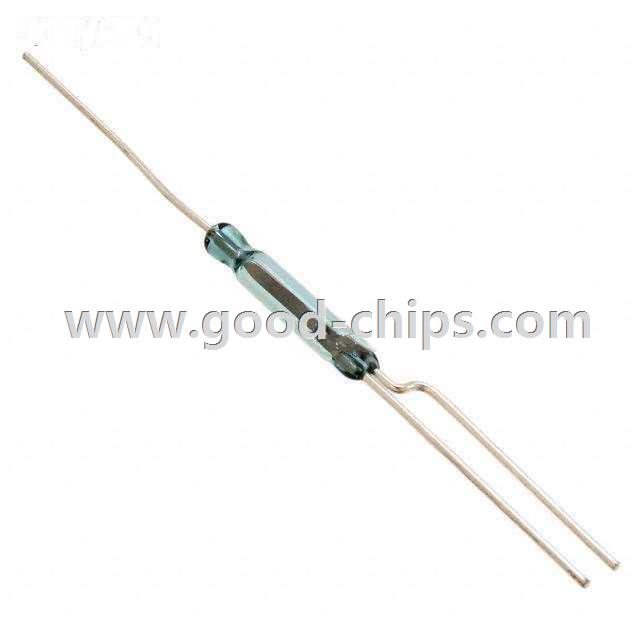

| Manufacturer Part Number: | MDRR-DT-15-20-F |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9895 Pieces |
| Unit Price: | Quote by Email |
| Description: | Glass Body Reed Switch SPDT 15 ~ 20AT Operate Range 5W 180mA (AC), 250mA (DC) 120V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDRR-DT-15-20-F Datasheet |
| Internal Part Number | 898-MDRR-DT-15-20-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
| RoHS Information | Cert of Compliance | |
| Featured Product | Reed Switch 5 Watt SPDT MDRR-DT Series | |
| Online Catalog | MDRR-DT Series | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Littelfuse Inc. | |
| Series | MDRR-DT | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Glass Body | |
| Circuit | SPDT | |
| Operate Range | 15 ~ 20AT | |
| Release Range | - | |
| Current - Switching | 180mA (AC), 250mA (DC) | |
| Voltage - Switching AC | 120V | |
| Voltage - Switching DC | 175V | |
| Power - Rated | 5W | |
| Operate Time | 0.7ms | |
| Release Time | 1ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 2.034" (51.66mm) | |
| Size - Body | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | |
| Height Above Board | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Capacitance | 1pF | |
| Current - Carry | 1.5A (DC) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDRR-DT-15-20-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDRR-DT-15-20-F is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MDRR-DT-15-20-F is new and unused, you can buy MDRR-DT-15-20-F Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDRR-DT-15-20-F.
