Manufacturer Part Number: | MDM-37SCBR-F222 |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | D-Sub Connectors |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

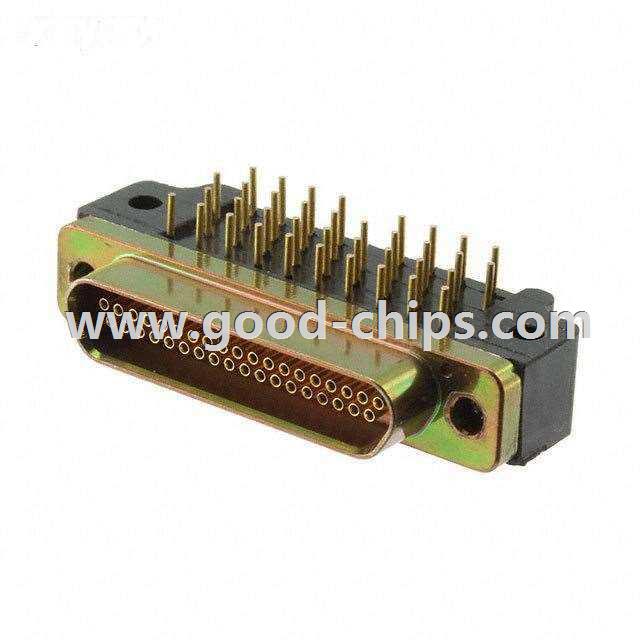

Description: | 37 Position D-Type, Micro-D Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MDM-37SCBR-F222 Datasheet |
Internal Part Number | 898-MDM-37SCBR-F222 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Military, MIL-DTL-83513 Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | ITT Cannon, LLC | |
Series | MIL-DTL-83513, Micro D Metal Shell (MDM) | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Type, Micro-D | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 37 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder | |
Features | Shielded | |
Shell Material, Finish | Aluminum, Yellow Chromate Cadmium Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 200°C | |
Voltage Rating | - | |
Current Rating | - | |
Housing Material | Liquid Crystal Polymer (LCP) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MDM-37SCBR-F222 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MDM-37SCBR-F222 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of MDM-37SCBR-F222 is new and unused, you can buy MDM-37SCBR-F222 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDM-37SCBR-F222.
