| Manufacturer Part Number: | MDM-21PH006B-A174-F222 |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

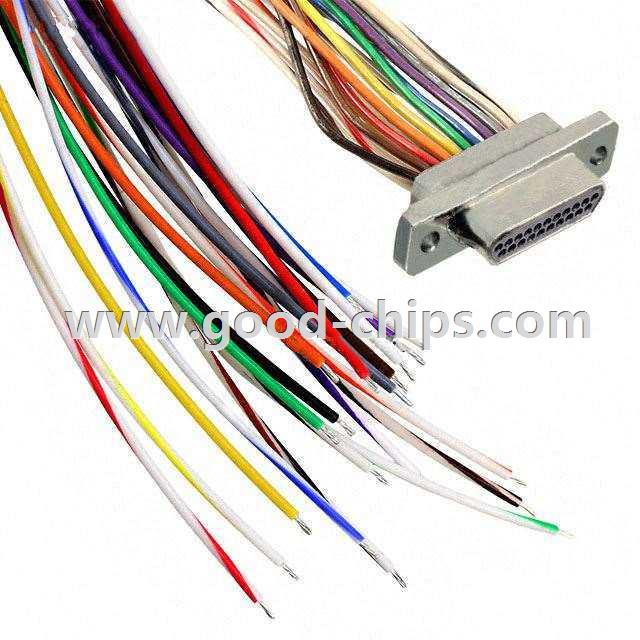

| Description: | 21 Position D-Type, Micro-D Plug, Male Pins Connector, Free Hanging (In-Line) Wire Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDM-21PH006B-A174-F222 Datasheet |
| Internal Part Number | 898-MDM-21PH006B-A174-F222 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Military, MIL-DTL-83513 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | ITT Cannon, LLC | |
| Series | MIL-DTL-83513, Micro D Metal Shell (MDM) | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Type, Micro-D | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 21 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Wire Leads | |
| Features | Shielded | |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 200°C | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDM-21PH006B-A174-F222 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDM-21PH006B-A174-F222 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of MDM-21PH006B-A174-F222 is new and unused, you can buy MDM-21PH006B-A174-F222 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDM-21PH006B-A174-F222.
