| Manufacturer Part Number: | MDLS-20265-SS-LV-G |
|---|---|
| Manufacturer: | Varitronix |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

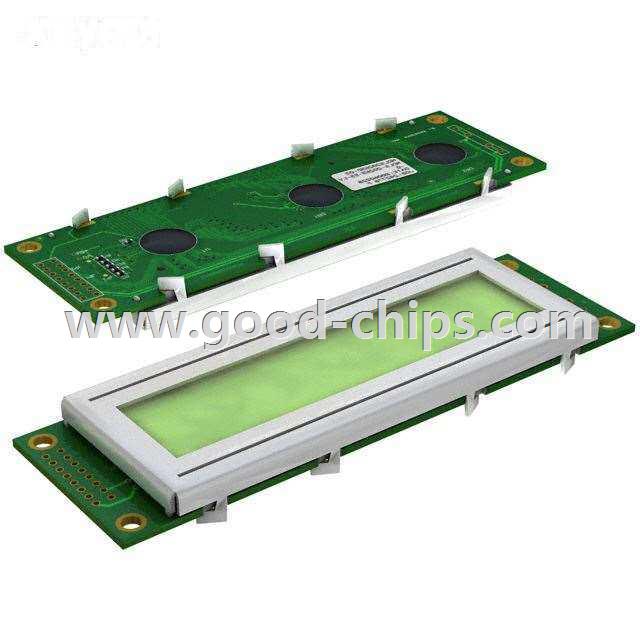

| Description: | Character LCD Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 116.00mm x 37.00mm x 6.70mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDLS-20265-SS-LV-G Datasheet |
| Internal Part Number | 898-MDLS-20265-SS-LV-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Standard Character Module Specs. | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Varitronix | |
| Series | MDL(S)-20265 | |
| Part Status | Obsolete | |
| Number of Characters | 40 | |
| Display Format | 20 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Reflective | |
| Character Size | 5.55mm H x 3.20mm W | |
| Outline L x W x H | 116.00mm x 37.00mm x 6.70mm | |
| Viewing Area | 83.00mm L x 18.60mm W | |
| Backlight | Without Backlight | |
| Voltage - Supply | 5V | |
| Dot Size | 0.65mm W x 0.60mm H | |
| Interface | Parallel | |
| Operating Temperature | -5°C ~ 50°C | |
| Text Color | - | |
| Background Color | Green | |
| Standard Package | 21 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDLS-20265-SS-LV-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDLS-20265-SS-LV-G is in stock for immediate shipping now. We are the distributor of Varitronix all series components. The condition of MDLS-20265-SS-LV-G is new and unused, you can buy MDLS-20265-SS-LV-G Varitronix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDLS-20265-SS-LV-G.
