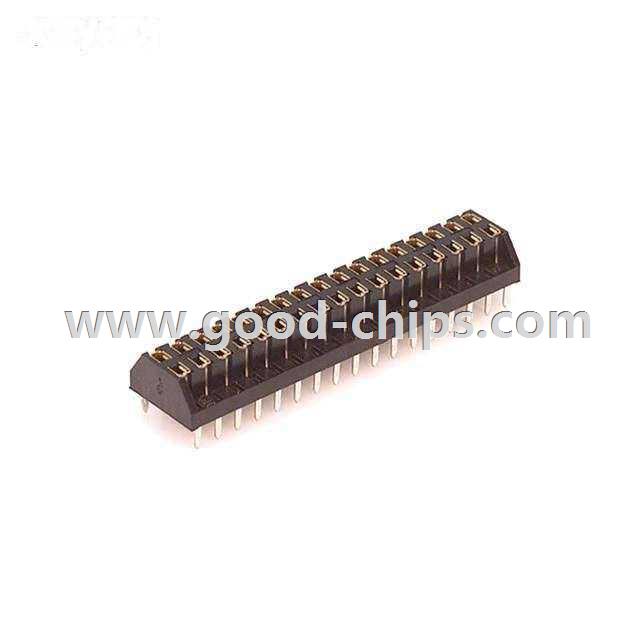

| Manufacturer Part Number: | MDF7-34D-2.54DSA(56) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 34 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDF7-34D-2.54DSA(56) Datasheet |
| Internal Part Number | 898-MDF7-34D-2.54DSA(56) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MDF7 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | MDF7 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Bottom Entry | |
| Contact Type | Female Socket | |
| Number of Positions | 34 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Color | Black | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDF7-34D-2.54DSA(56) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDF7-34D-2.54DSA(56) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of MDF7-34D-2.54DSA(56) is new and unused, you can buy MDF7-34D-2.54DSA(56) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDF7-34D-2.54DSA(56).
