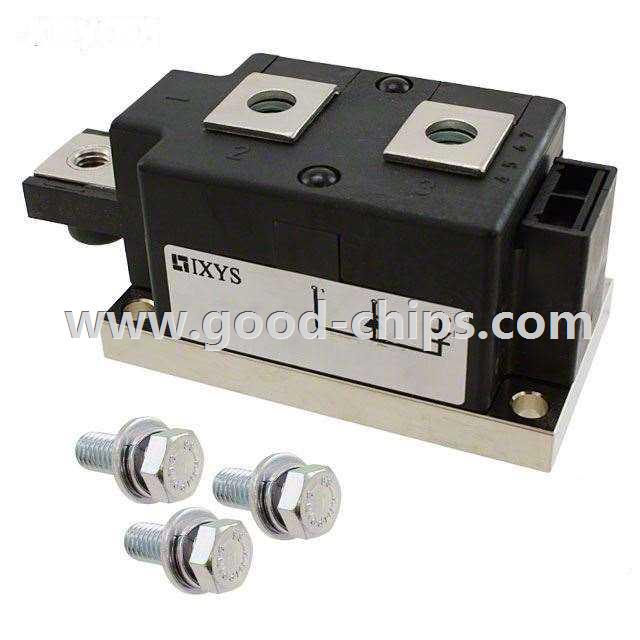

Manufacturer Part Number: | MDD312-22N1 |
---|---|
Manufacturer: | IXYS |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 1 Pair Series Connection Standard 2200V (2.2kV) 310A Chassis Mount Y1-CU |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MDD312-22N1 Datasheet |
Internal Part Number | 898-MDD312-22N1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Diode Array | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | IXYS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Diode Configuration | 1 Pair Series Connection | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 2200V (2.2kV) | |
Current - Average Rectified (Io) (per Diode) | 310A | |
Voltage - Forward (Vf) (Max) @ If | 1.32V @ 600A | |
Speed | Standard Recovery >500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 30mA @ 2200V | |
Mounting Type | Chassis Mount | |
Package / Case | Y1-CU | |
Supplier Device Package | Y1-CU | |
Standard Package | 3 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MDD312-22N1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MDD312-22N1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MDD312-22N1 is new and unused, you can buy MDD312-22N1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDD312-22N1.
