Manufacturer Part Number: | MD24-12 |
---|---|
Manufacturer: | Laird Technologies IAS |
Product Category: | RF Antennas |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

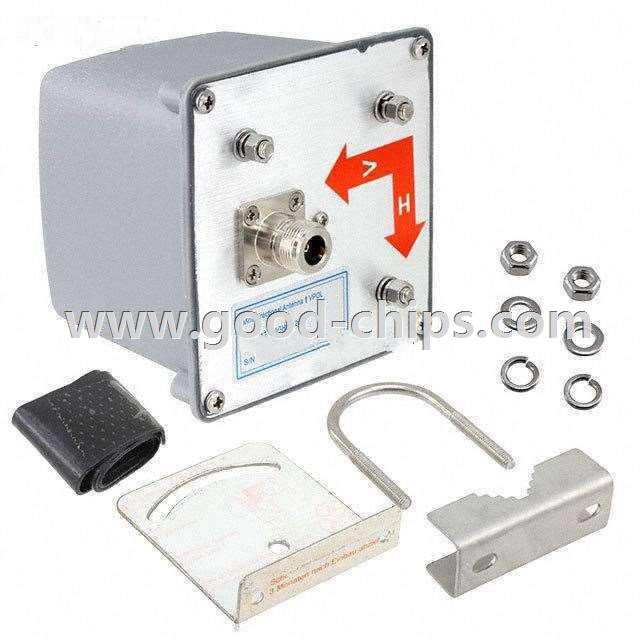

Description: | 2.4GHz WiMax™, WLAN Panel RF Antenna 2.4GHz ~ 2.483GHz 12dBi Connector, N Female Bracket Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MD24-12 Datasheet |
Internal Part Number | 898-MD24-12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Laird Technologies IAS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | UHF (2 GHz ~ 3 GHz) | |
Frequency (Center/Band) | 2.4GHz | |
Frequency Range | 2.4GHz ~ 2.483GHz | |
Antenna Type | Panel | |
Number of Bands | 1 | |
VSWR | 1.5 | |
Return Loss | -14dB | |
Gain | 12dBi | |
Power - Max | 100W | |
Features | - | |
Termination | Connector, N Female | |
Ingress Protection | - | |
Mounting Type | Bracket Mount | |
Height (Max) | 4.016" (102.00mm) | |
Applications | WiMax™, WLAN | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MD24-12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MD24-12 is in stock for immediate shipping now. We are the distributor of Laird Technologies IAS all series components. The condition of MD24-12 is new and unused, you can buy MD24-12 Laird Technologies IAS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MD24-12.
