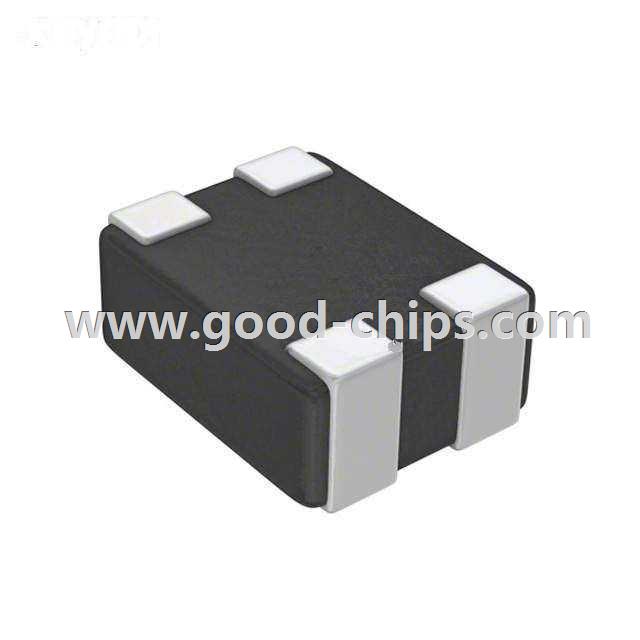

| Manufacturer Part Number: | MCZ1210DH120L2TA0G |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 12 Ohm @ 100MHz 100mA DCR 1.5 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCZ1210DH120L2TA0G Datasheet |
| Internal Part Number | 898-MCZ1210DH120L2TA0G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MCZ-DH Series Common Mode Filters | |
| Online Catalog | MCZ Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | TDK Corporation | |
| Series | MCZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 12 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 1.5 Ohm | |
| Voltage Rating - DC | 5V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
| Height (Max) | 0.024" (0.60mm) | |
| Package / Case | 1210 (3225 Metric), 4 PC Pad | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCZ1210DH120L2TA0G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCZ1210DH120L2TA0G is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MCZ1210DH120L2TA0G is new and unused, you can buy MCZ1210DH120L2TA0G TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCZ1210DH120L2TA0G.
