| Manufacturer Part Number: | MCP9800DM-PCTL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

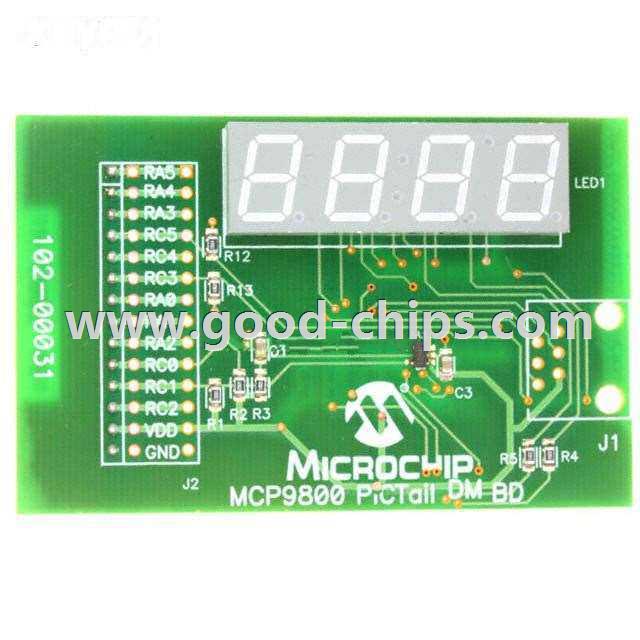

| Description: | MCP9800 PICtail™ Temperature Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP9800DM-PCTL Datasheet |
| Internal Part Number | 898-MCP9800DM-PCTL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | MCP9800/1/2/3 High-Accuracy Temperature Sensor Family | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP9800 Thermal Sensor PICtail™ Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ | |
| Part Status | Active | |
| Sensor Type | Temperature | |
| Sensing Range | -55°C ~ 125°C | |
| Interface | I²C, SMBus | |
| Sensitivity | ±0.5°C | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Embedded | Yes, MCU, 8-Bit | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP9800 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP9800DM-PCTL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP9800DM-PCTL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP9800DM-PCTL is new and unused, you can buy MCP9800DM-PCTL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP9800DM-PCTL.
