| Manufacturer Part Number: | MCP6V01RD-TCPL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

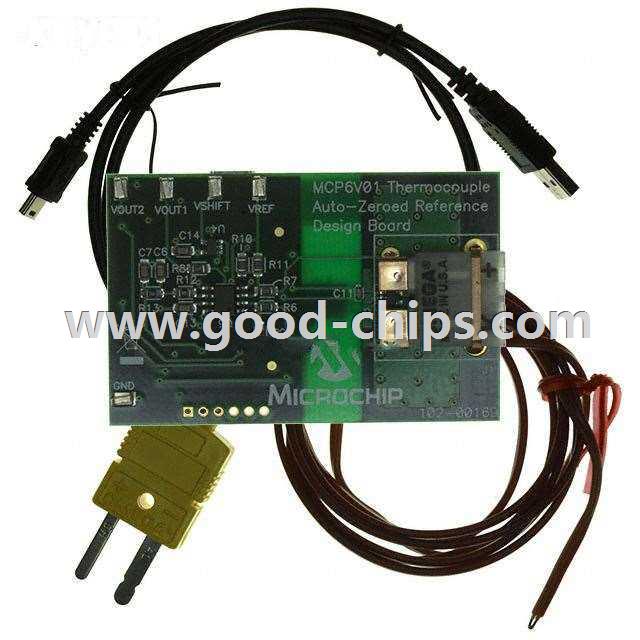

| Description: | MCP6V01 1 - Single Channels per IC Chopper (Zero-Drift) Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP6V01RD-TCPL Datasheet |
| Internal Part Number | 898-MCP6V01RD-TCPL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | MCP6V01RD-TCPL: Thermocouple Interface | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP6V01 Thermocouple Auto-Zeroed Reference Design | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | Chopper (Zero-Drift) | |
| Output Type | Rail-to-Rail | |
| Slew Rate | 0.5 V/µs | |
| -3db Bandwidth | - | |
| Current - Output / Channel | 22mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | - | |
| Voltage - Supply, Single/Dual (±) | 1.8 V ~ 5.5 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable, Thermocouple | |
| Utilized IC / Part | MCP6V01 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP6V01RD-TCPL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP6V01RD-TCPL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP6V01RD-TCPL is new and unused, you can buy MCP6V01RD-TCPL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP6V01RD-TCPL.
