| Manufacturer Part Number: | MCP6SX2DM-PCTLPD |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

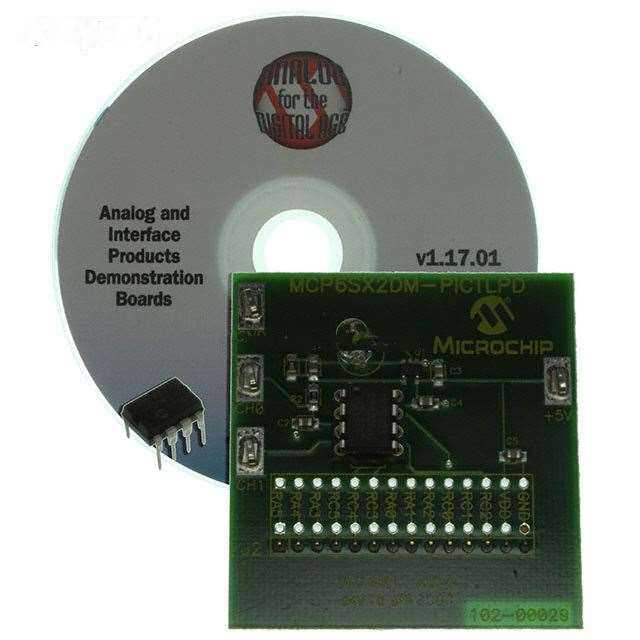

| Description: | MCP6001, MCP6S22, MCP6S92 PICtail™ Light, Current Output Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP6SX2DM-PCTLPD Datasheet |
| Internal Part Number | 898-MCP6SX2DM-PCTLPD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP6Sx2 PGA Photo Diode PICtail™ Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ | |
| Part Status | Active | |
| Sensor Type | Light, Current Output | |
| Sensing Range | - | |
| Interface | Analog | |
| Sensitivity | 850nm | |
| Voltage - Supply | 2.5 V ~ 5.5 V | |
| Embedded | No | |
| Supplied Contents | Board, Samples | |
| Utilized IC / Part | MCP6001, MCP6S22, MCP6S92 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP6SX2DM-PCTLPD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP6SX2DM-PCTLPD is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP6SX2DM-PCTLPD is new and unused, you can buy MCP6SX2DM-PCTLPD Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP6SX2DM-PCTLPD.
