| Manufacturer Part Number: | MCP6S22DM-PICTL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

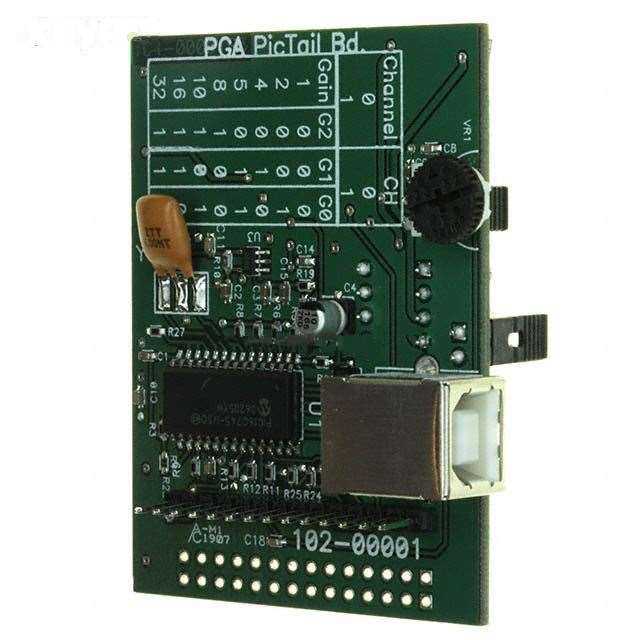

| Description: | MCP6S22 PICtail™ Series 2 - Dual Channels per IC Programmable Gain Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP6S22DM-PICTL Datasheet |
| Internal Part Number | 898-MCP6S22DM-PICTL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP6S22 PGA PICtail Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ | |
| Part Status | Active | |
| Channels per IC | 2 - Dual | |
| Amplifier Type | Programmable Gain | |
| Output Type | Single-Ended, Rail-to-Rail | |
| Slew Rate | 22 V/µs | |
| -3db Bandwidth | 12MHz | |
| Current - Output / Channel | 30mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Main IC) | 1mA | |
| Voltage - Supply, Single/Dual (±) | 2.5 V ~ 5.5 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board, Cable | |
| Utilized IC / Part | MCP6S22 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP6S22DM-PICTL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP6S22DM-PICTL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP6S22DM-PICTL is new and unused, you can buy MCP6S22DM-PICTL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP6S22DM-PICTL.
