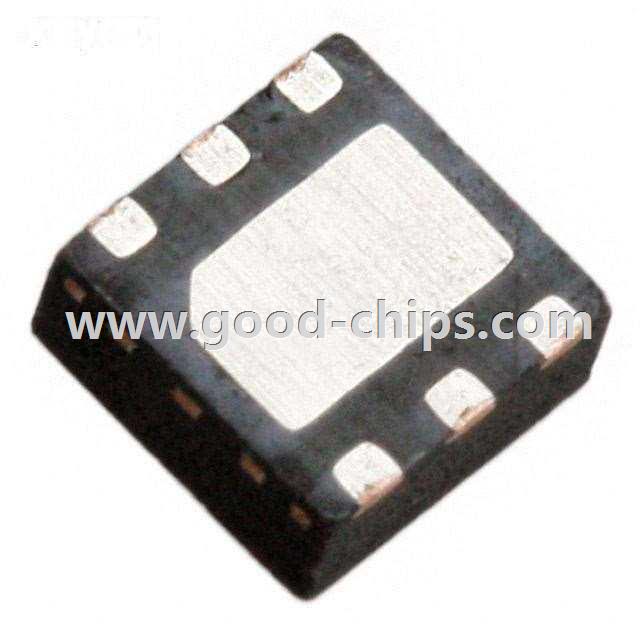

Manufacturer Part Number: | MCP4726A2T-E/MAY |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Bit Digital to Analog Converter 1 6-DFN (2x2) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP4726A2T-E/MAY Datasheet |
Internal Part Number | 898-MCP4726A2T-E/MAY | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Mold Compound Update 18/Feb/2015 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Digital to Analog Converters (DAC) | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Bits | 12 | |
Number of D/A Converters | 1 | |
Settling Time | 6µs (Typ) | |
Output Type | Voltage - Buffered | |
Differential Output | No | |
Data Interface | I²C | |
Reference Type | External, Supply | |
Voltage - Supply, Analog | 2.7 V ~ 5.5 V | |
Voltage - Supply, Digital | 2.7 V ~ 5.5 V | |
INL/DNL (LSB) | ±2, ±0.2 | |
Architecture | R-2R | |
Operating Temperature | -40°C ~ 125°C | |
Package / Case | 6-VDFN Exposed Pad | |
Supplier Device Package | 6-DFN (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP4726A2T-E/MAY | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP4726A2T-E/MAY is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP4726A2T-E/MAY is new and unused, you can buy MCP4726A2T-E/MAY Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP4726A2T-E/MAY.
