Manufacturer Part Number: | MCP4461T-103E/ST |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Data Acquisition - Digital Potentiometers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Digital Potentiometer 10k Ohm 4 Circuit 257 Taps I²C Interface 20-TSSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP4461T-103E/ST Datasheet |
Internal Part Number | 898-MCP4461T-103E/ST | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Lead Frame Update 16/Apr/2015 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Digital Potentiometers | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Taper | Linear | |
Configuration | Potentiometer | |
Number of Circuits | 4 | |
Number of Taps | 257 | |
Resistance (Ohms) | 10k | |
Interface | I²C | |
Memory Type | Non-Volatile | |
Voltage - Supply | 2.7 V ~ 5.5 V | |
Features | Selectable Address | |
Tolerance | - | |
Temperature Coefficient (Typ) | 150 ppm/°C | |
Resistance - Wiper (Ohms) (Typ) | 75 | |
Operating Temperature | -40°C ~ 125°C | |

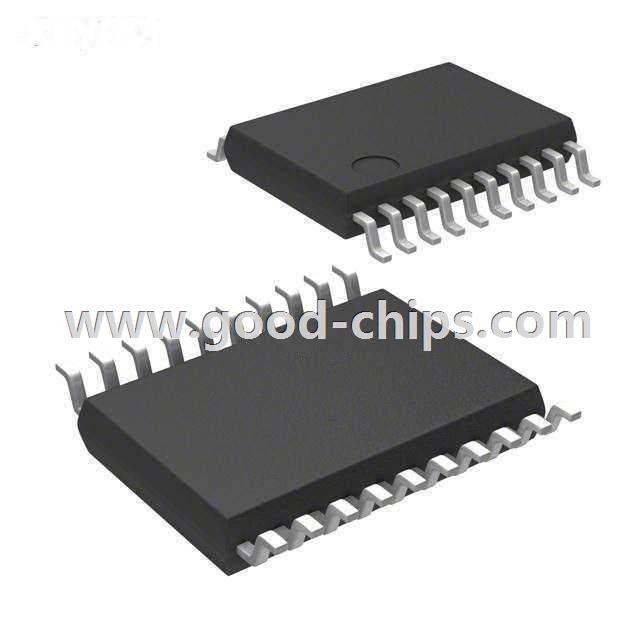

Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
Supplier Device Package | 20-TSSOP | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP4461T-103E/ST | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP4461T-103E/ST is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP4461T-103E/ST is new and unused, you can buy MCP4461T-103E/ST Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP4461T-103E/ST.
