| Manufacturer Part Number: | MCP42XXDM-PTPLS |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

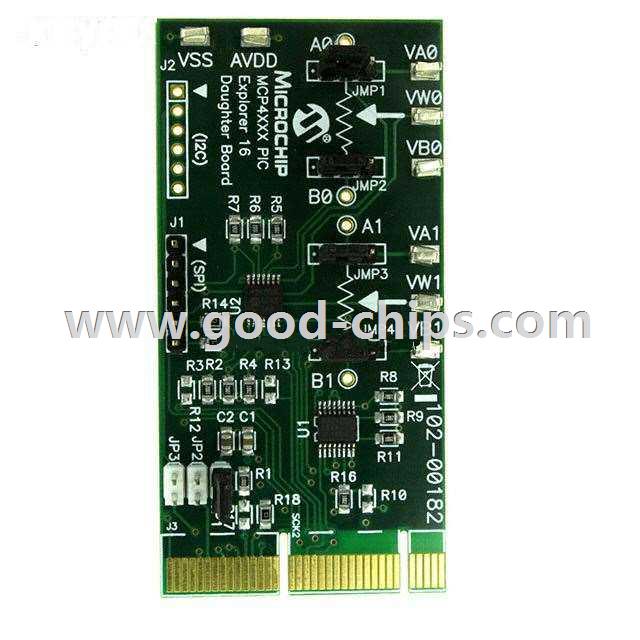

| Description: | MCP42XX PICtail™ Plus Series Digital Potentiometer Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP42XXDM-PTPLS Datasheet |
| Internal Part Number | 898-MCP42XXDM-PTPLS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP42xx PICtail™ Plus Daughter Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ Plus | |
| Part Status | Active | |
| Main Purpose | Digital Potentiometer | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | MCP42XX | |
| Primary Attributes | 1 Dual Pot, 10k Ohms, 257 Taps, SPI Interface | |
| Secondary Attributes | 2.7 ~ 5.5 V, 150ppm/°C | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP42XXDM-PTPLS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP42XXDM-PTPLS is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP42XXDM-PTPLS is new and unused, you can buy MCP42XXDM-PTPLS Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP42XXDM-PTPLS.
