| Manufacturer Part Number: | MCP4261T-502E/ST |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Data Acquisition - Digital Potentiometers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Digital Potentiometer 5k Ohm 2 Circuit 257 Taps SPI Interface 14-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP4261T-502E/ST Datasheet |
| Internal Part Number | 898-MCP4261T-502E/ST | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification Copper Wire 17/Mar/2014 Qualification Report Revsion 15/Oct/2014 | |
| PCN Packaging | Reel Design Update 07/May/2015 Label and Packing Changes 23/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital Potentiometers | |
| Manufacturer | Microchip Technology | |
| Series | WiperLock™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Taper | Linear | |
| Configuration | Potentiometer | |
| Number of Circuits | 2 | |
| Number of Taps | 257 | |
| Resistance (Ohms) | 5k | |
| Interface | SPI | |
| Memory Type | Non-Volatile | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Features | - | |
| Tolerance | - | |
| Temperature Coefficient (Typ) | 150 ppm/°C | |
| Resistance - Wiper (Ohms) (Typ) | 75 | |
| Operating Temperature | -40°C ~ 125°C | |

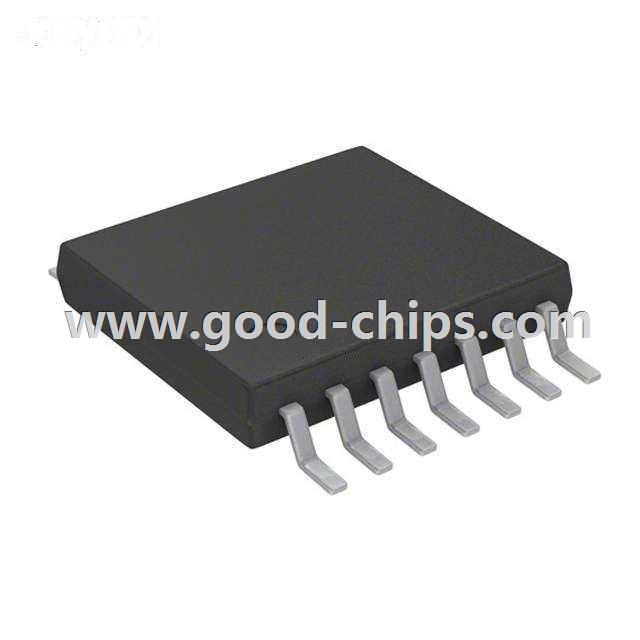

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 14-TSSOP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP4261T-502E/ST | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP4261T-502E/ST is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP4261T-502E/ST is new and unused, you can buy MCP4261T-502E/ST Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP4261T-502E/ST.
