Manufacturer Part Number: | MCP3221DM-PCTL |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

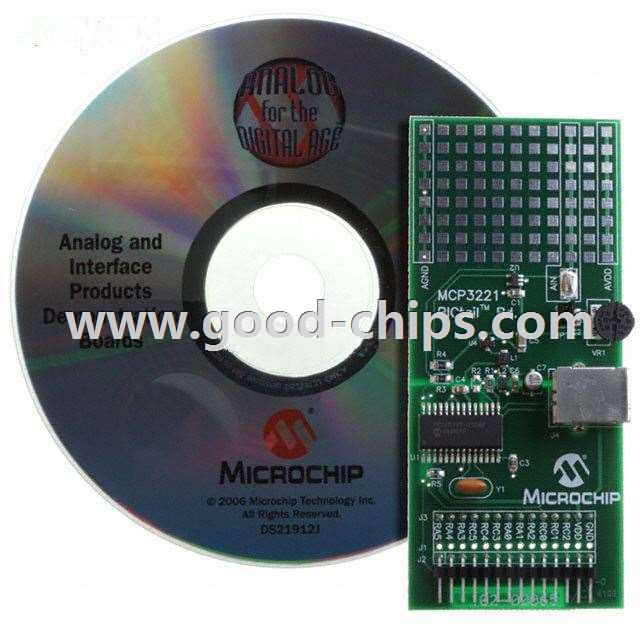

Description: | MCP3221 PICtail™ 12 Bit 22.3k Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP3221DM-PCTL Datasheet |
Internal Part Number | 898-MCP3221DM-PCTL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Microchip Technology | |
Series | PICtail™ | |
Part Status | Active | |
Number of A/D Converters | 1 | |
Number of Bits | 12 | |
Sampling Rate (Per Second) | 22.3k | |
Data Interface | Serial | |
Input Range | - | |
Power (Typ) @ Conditions | - | |
Utilized IC / Part | MCP3221 | |
Supplied Contents | Board, Cable | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP3221DM-PCTL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP3221DM-PCTL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP3221DM-PCTL is new and unused, you can buy MCP3221DM-PCTL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP3221DM-PCTL.
