| Manufacturer Part Number: | MCP1824T-1802E/DC |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 300mA SOT-223-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP1824T-1802E/DC Datasheet |
| Internal Part Number | 898-MCP1824T-1802E/DC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 1.8V | |
| Current - Output | 300mA | |
| Voltage - Dropout (Typical) | 0.2V @ 300mA | |
| Number of Regulators | 1 | |
| Voltage - Input | 2.1 V ~ 6 V | |
| Current - Limit (Min) | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

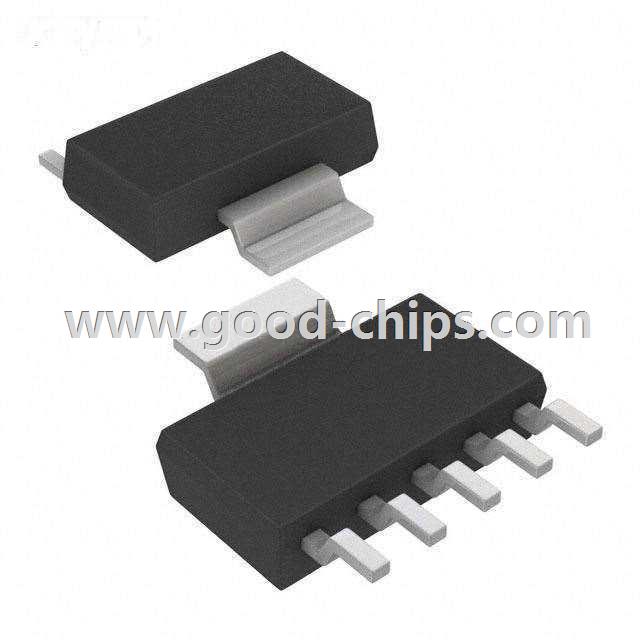

| Package / Case | SOT-223-6 | |
| Supplier Device Package | SOT-223-5 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP1824T-1802E/DC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP1824T-1802E/DC is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1824T-1802E/DC is new and unused, you can buy MCP1824T-1802E/DC Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP1824T-1802E/DC.
