Manufacturer Part Number: | MCP1640RD-4ABC |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |

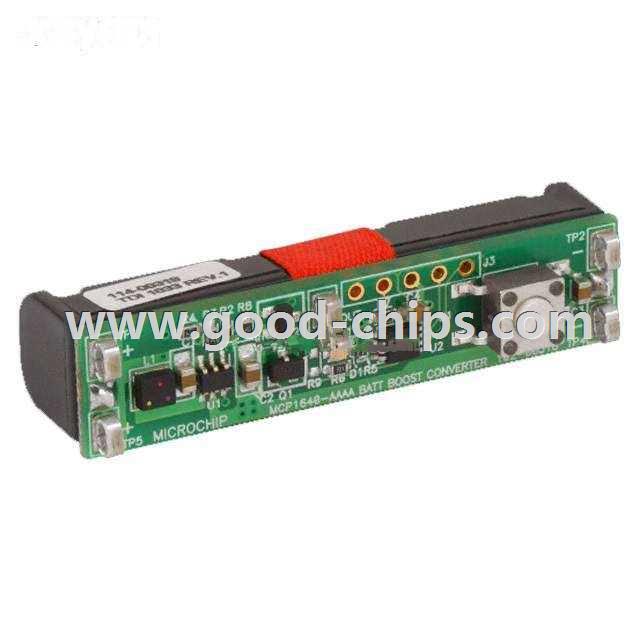

Description: | MCP1640 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP1640RD-4ABC Datasheet |
Internal Part Number | 898-MCP1640RD-4ABC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Optimizing Battery Life using MCP1640 (AN1337) | |
Design Resources | MCP1640 Quad A Ref Design Gerbers MCP1640 Quad A Ref Design Firmware Development Tool Selector | |
Reference Design Library | MCP1640RD-4ABC: 3.3V @ >130mA, 1.5V Batt | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | MCP1640 Reference Design | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 3.3V | |
Current - Output | 130mA | |
Voltage - Input | 1.5V | |
Regulator Topology | Boost | |
Frequency - Switching | 500kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MCP1640 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP1640RD-4ABC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP1640RD-4ABC is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1640RD-4ABC is new and unused, you can buy MCP1640RD-4ABC Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP1640RD-4ABC.
