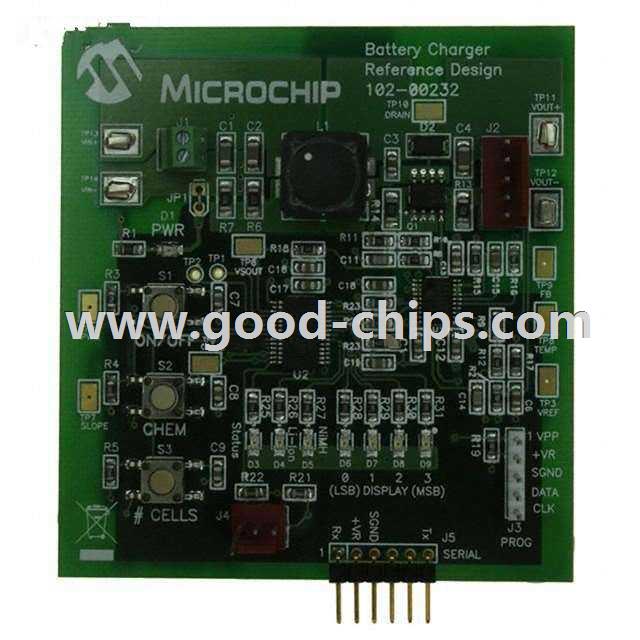

| Manufacturer Part Number: | MCP1631RD-MCC2 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9040 Pieces |
| Unit Price: | Quote by Email |
| Description: | MCP1631HV, PIC16F883 - Power Management, Battery Charger Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP1631RD-MCC2 Datasheet |
| Internal Part Number | 898-MCP1631RD-MCC2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MCP1631 Family AppNote (AN1137) | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | MCP1631RD-MCC2(#1): 1~5 NiMH, 1~2 Li-Ion Charger MCP1631RD-MCC2(#2): 1~2 LEDs @ 300mA, 5.3 ~ 16 Vin | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP1631HV Multi-Chemistry Battery Charger Reference Design | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Battery Charger | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | MCP1631HV, PIC16F883 | |
| Primary Attributes | 1 ~ 2 Cell- Li-Ion, 1 ~ 5 Cell- NiCd/NiMH, 1 ~ 2 1W LEDs | |
| Secondary Attributes | Status LEDs | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP1631RD-MCC2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP1631RD-MCC2 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1631RD-MCC2 is new and unused, you can buy MCP1631RD-MCC2 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP1631RD-MCC2.
