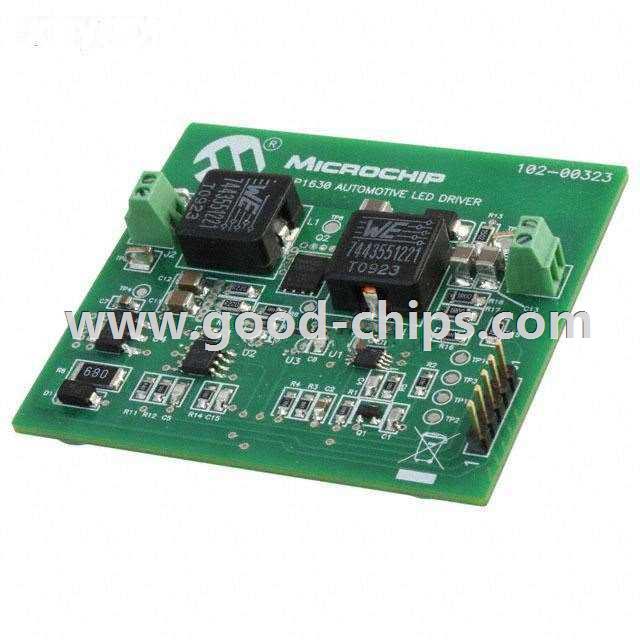

Manufacturer Part Number: | MCP1630RD-SALED |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | MCP1630 1, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP1630RD-SALED Datasheet |
Internal Part Number | 898-MCP1630RD-SALED | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | MCP1630RD-SALED Gerber Development Tool Selector Lighting Product Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | MCP1630 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 350mA | |
Outputs and Type | 1, Non-Isolated | |
Voltage - Output | - | |
Features | Dimmable | |
Voltage - Input | 9 V ~ 16 V | |
Supplied Contents | Board | |
Utilized IC / Part | MCP1630 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP1630RD-SALED | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP1630RD-SALED is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1630RD-SALED is new and unused, you can buy MCP1630RD-SALED Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP1630RD-SALED.
