Manufacturer Part Number: | MCP1630RD-LIC2 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

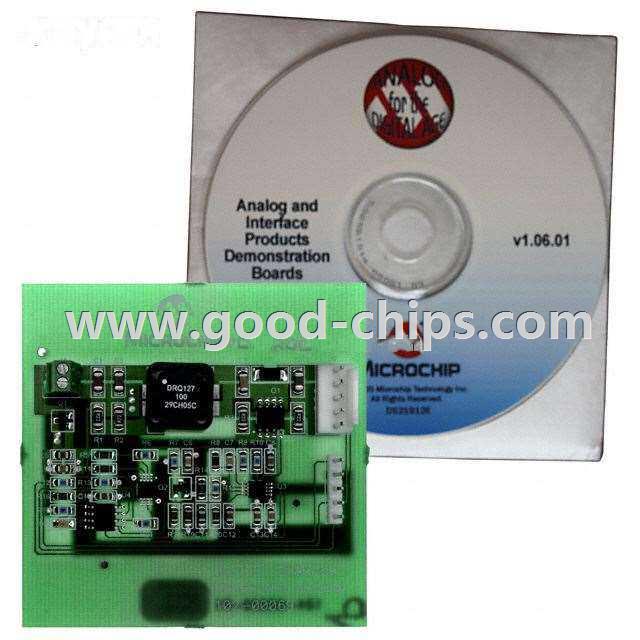

Description: | MCP1630 - Power Management, Battery Charger Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP1630RD-LIC2 Datasheet |
Internal Part Number | 898-MCP1630RD-LIC2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | MCP1630RD-LIC2 Gerber Files MCP1630RD-LIC2 MCU Code Files Development Tool Selector | |
Reference Design Library | MCP1630RD-LIC2: Li-Ion Battery Charger | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Power Management, Battery Charger | |
Embedded | Yes, MCU, 8-Bit | |
Utilized IC / Part | MCP1630 | |
Primary Attributes | 3 Cells- NiMH / NiCd, 1.35A Out, 6V ~ 14V Input | |
Secondary Attributes | Preconditioning, Cell Temperature and Batt Pack Fault Monitoring | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP1630RD-LIC2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP1630RD-LIC2 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1630RD-LIC2 is new and unused, you can buy MCP1630RD-LIC2 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP1630RD-LIC2.
