| Manufacturer Part Number: | MCIMX6S5EVM10ACR |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microprocessors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

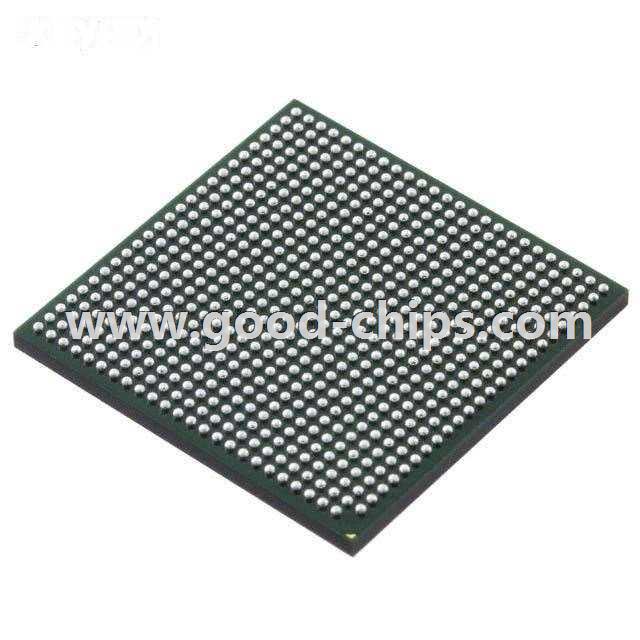

| Description: | ARM® Cortex®-A9 Microprocessor IC i.MX6S 1 Core, 32-Bit 1.0GHz 624-MAPBGA (21x21) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCIMX6S5EVM10ACR Datasheet |
| Internal Part Number | 898-MCIMX6S5EVM10ACR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | I.MX 6SOLO6DUALLITE Errata Update 11/Dec/2013 i.MX6DL/S Rev1.2 Release 30/Jan/2014 I.MX6 Datasheet Update 06/May/2014 Errata Update 06/Aug/2014 Maskset Updates 15/Jan/2015 Masket Revision A 11/Mar/2015 Reference Manual Update 27/May/2015 Datasheet Update 02/Jul/2015 | |
| PCN Assembly/Origin | IMX6DLS 01/May/2015 Assembly Site Addition 01/Jun/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microprocessors | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | i.MX6S | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | ARM® Cortex®-A9 | |
| Number of Cores/Bus Width | 1 Core, 32-Bit | |
| Speed | 1.0GHz | |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 | |
| Graphics Acceleration | Yes | |
| Display & Interface Controllers | Keypad, LCD | |
| Ethernet | 10/100/1000 Mbps (1) | |
| SATA | - | |
| USB | USB 2.0 + PHY (4) | |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V | |
| Operating Temperature | -20°C ~ 105°C (TJ) | |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | |
| Package / Case | 624-LFBGA | |
| Supplier Device Package | 624-MAPBGA (21x21) | |
| Additional Interfaces | CAN, I²C, I²S, MMC/SD/SDIO, SAI, SPI, SSI, UART | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCIMX6S5EVM10ACR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCIMX6S5EVM10ACR is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MCIMX6S5EVM10ACR is new and unused, you can buy MCIMX6S5EVM10ACR NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCIMX6S5EVM10ACR.
