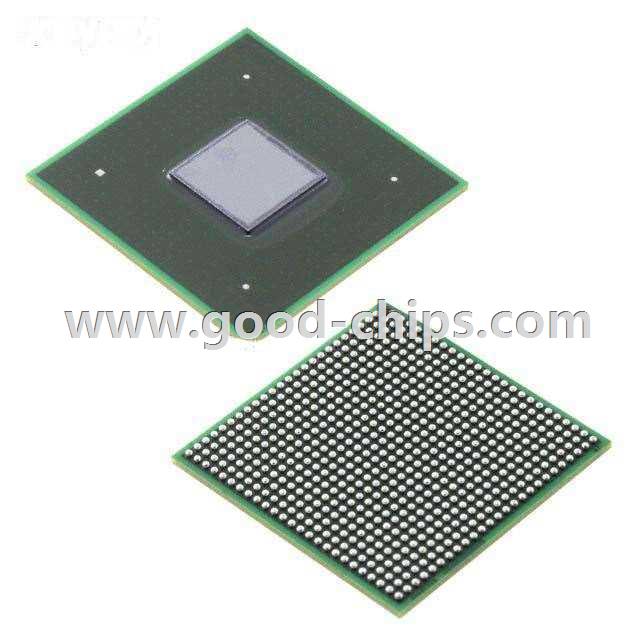

| Manufacturer Part Number: | MCIMX6D5EYM10AD |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microprocessors |
| Available Quantity: | 9097 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM® Cortex®-A9 Microprocessor IC i.MX6D 2 Core, 32-Bit 1.0GHz 624-FCBGA (21x21) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCIMX6D5EYM10AD Datasheet |
| Internal Part Number | 898-MCIMX6D5EYM10AD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | i.MX6 Series Processors | |
| PCN Design/Specification | I.MX 6Dual/6Quad Errata Update 11/Dec/2013 I.MX6DQ Rev 1.3 Errata Revision 28/Jan/2014 I.MX6 Datasheet Update 01/May/2014 Reference Manual Update 01/Aug/2014 Design Change 01/Aug/2014 Errata Update 01/Jul/2015 Datasheet Correction 16/Nov/2015 | |
| PCN Assembly/Origin | i.MX6Q/D Assembly Site 24/Jan/2014 Assembly Site Addition 05/Mar/2015 Reference Manual Update 28/Jul/2015 | |
| Online Catalog | i.MX 6D | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microprocessors | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | i.MX6D | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | ARM® Cortex®-A9 | |
| Number of Cores/Bus Width | 2 Core, 32-Bit | |
| Speed | 1.0GHz | |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 | |
| Graphics Acceleration | Yes | |
| Display & Interface Controllers | Keypad, LCD | |
| Ethernet | 10/100/1000 Mbps (1) | |
| SATA | SATA 3Gbps (1) | |
| USB | USB 2.0 + PHY (4) | |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V | |
| Operating Temperature | -20°C ~ 105°C (TJ) | |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | |
| Package / Case | 624-FBGA, FCBGA | |
| Supplier Device Package | 624-FCBGA (21x21) | |
| Additional Interfaces | CAN, I²C, I²S, MMC/SD/SDIO, SAI, SPI, SSI, UART | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCIMX6D5EYM10AD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCIMX6D5EYM10AD is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MCIMX6D5EYM10AD is new and unused, you can buy MCIMX6D5EYM10AD NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCIMX6D5EYM10AD.
