| Manufacturer Part Number: | MCH4009-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 3.5V 40mA 25GHz 120mW Surface Mount 4-MCPH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCH4009-TL-H Datasheet |
| Internal Part Number | 898-MCH4009-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | NPN RF Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 3.5V | |
| Frequency - Transition | 25GHz | |
| Noise Figure (dB Typ @ f) | 1.1dB @ 2GHz | |
| Gain | 13.5dB | |
| Power - Max | 120mW | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 1V | |
| Current - Collector (Ic) (Max) | 40mA | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Flat Leads | |

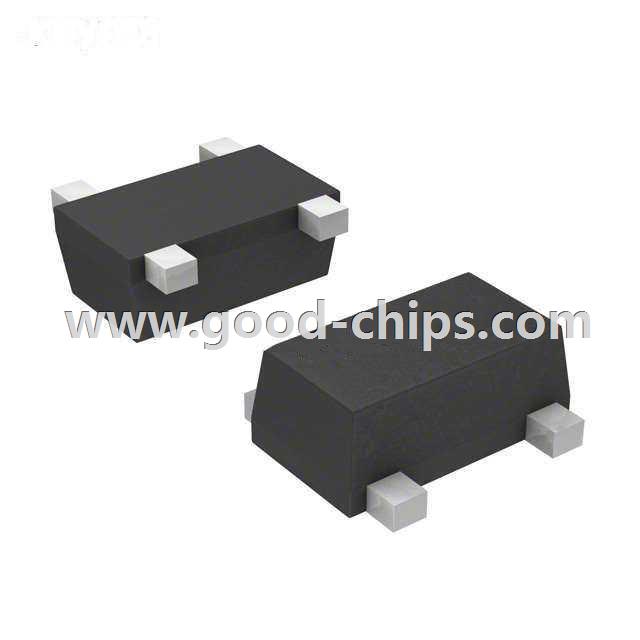

| Supplier Device Package | 4-MCPH | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCH4009-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCH4009-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MCH4009-TL-H is new and unused, you can buy MCH4009-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCH4009-TL-H.
