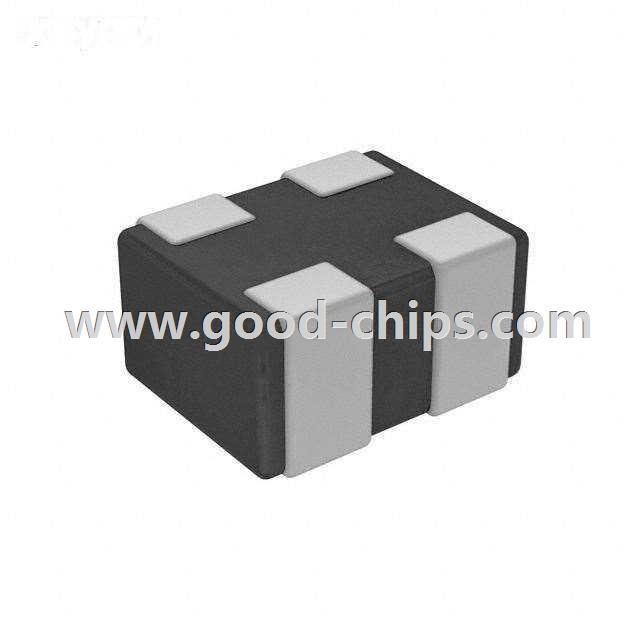

Manufacturer Part Number: | MCF12102G900-T |
---|---|
Manufacturer: | Taiyo Yuden |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2 Line Common Mode Choke Surface Mount 90 Ohm @ 100MHz 100mA DCR 4.5 Ohm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCF12102G900-T Datasheet |
Internal Part Number | 898-MCF12102G900-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MCF Series | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | Taiyo Yuden | |
Series | MC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Signal Line | |
Number of Lines | 2 | |
Impedance @ Frequency | 90 Ohm @ 100MHz | |
Inductance @ Frequency | - | |
Current Rating (Max) | 100mA | |
DC Resistance (DCR) (Max) | 4.5 Ohm | |
Voltage Rating - DC | 5V | |
Voltage Rating - AC | - | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
Height (Max) | 0.026" (0.65mm) | |
Package / Case | 0504 (1210 Metric), 4 Lead | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCF12102G900-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCF12102G900-T is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of MCF12102G900-T is new and unused, you can buy MCF12102G900-T Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCF12102G900-T.
