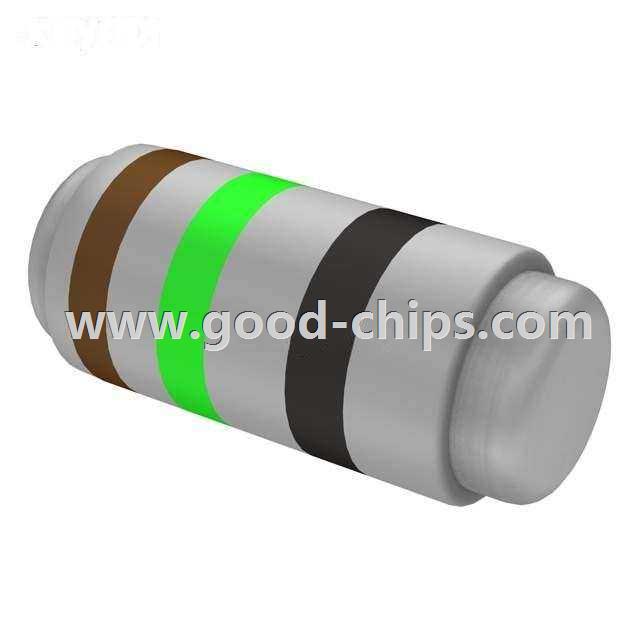

Manufacturer Part Number: | MCF-25JR-15R |
---|---|
Manufacturer: | Yageo |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 15 OHM 5% 1/4W MELF |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCF-25JR-15R Datasheet |
Internal Part Number | 898-MCF-25JR-15R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Yageo | |
Series | MCF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 15 | |
Tolerance | ±5% | |
Power (Watts) | 0.25W, 1/4W | |
Composition | Carbon Film | |
Features | - | |
Temperature Coefficient | 0/ -350ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | MELF, 0207 | |
Supplier Device Package | MELF | |
Size / Dimension | 0.087" Dia x 0.232" L (2.20mm x 5.90mm) | |
Height | - | |
Number of Terminations | 2 | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCF-25JR-15R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCF-25JR-15R is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of MCF-25JR-15R is new and unused, you can buy MCF-25JR-15R Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCF-25JR-15R.
