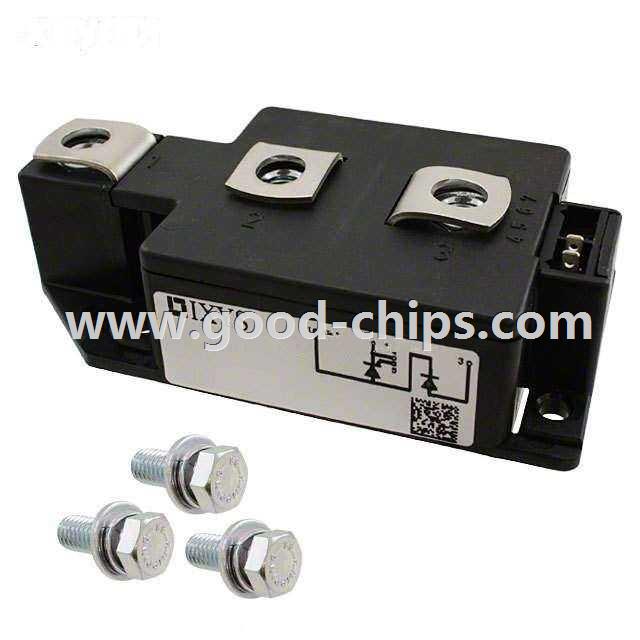

Manufacturer Part Number: | MCD250-16IO1 |
---|---|
Manufacturer: | IXYS |
Product Category: | Thyristors - SCRs - Modules |
Available Quantity: | 9019 Pieces |
Unit Price: | Quote by Email |
Description: | SCR Module 1600V 450A Series Connection - SCR/Diode Chassis Mount Y2-DCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCD250-16IO1 Datasheet |
Internal Part Number | 898-MCD250-16IO1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | SCR Module Selection Guide | |
Online Catalog | MCC, MCD Series | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs - Modules | |
Manufacturer | IXYS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Structure | Series Connection - SCR/Diode | |
Number of SCRs, Diodes | 1 SCR, 1 Diode | |
Voltage - Off State | 1600V | |
Current - Gate Trigger (Igt) (Max) | 150mA | |
Current - On State (It (AV)) (Max) | 287A | |
Current - On State (It (RMS)) (Max) | 450A | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 9000A, 9600A | |
Current - Hold (Ih) (Max) | 150mA | |
Mounting Type | Chassis Mount | |
Package / Case | Y2-DCB | |
Standard Package | 2 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCD250-16IO1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCD250-16IO1 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MCD250-16IO1 is new and unused, you can buy MCD250-16IO1 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCD250-16IO1.
