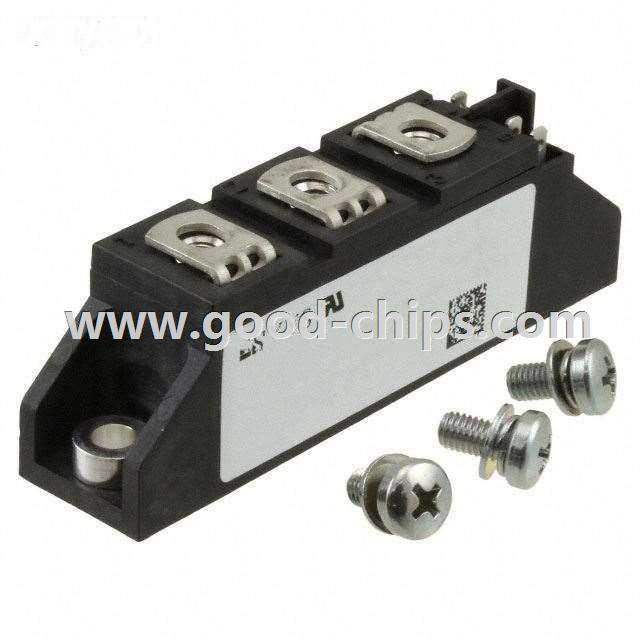

Manufacturer Part Number: | MCC95-12IO1B |
---|---|
Manufacturer: | IXYS |
Product Category: | Thyristors - SCRs - Modules |
Available Quantity: | 9023 Pieces |
Unit Price: | Quote by Email |
Description: | SCR Module 1200V 180A Series Connection - All SCRs Chassis Mount TO-240AA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCC95-12IO1B Datasheet |
Internal Part Number | 898-MCC95-12IO1B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | SCR Module Selection Guide | |
Online Catalog | MCC, MCD Series | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs - Modules | |
Manufacturer | IXYS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Structure | Series Connection - All SCRs | |
Number of SCRs, Diodes | 2 SCRs | |
Voltage - Off State | 1200V | |
Current - Gate Trigger (Igt) (Max) | 150mA | |
Current - On State (It (AV)) (Max) | 116A | |
Current - On State (It (RMS)) (Max) | 180A | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 2250A, 2400A | |
Current - Hold (Ih) (Max) | 200mA | |
Mounting Type | Chassis Mount | |
Package / Case | TO-240AA | |
Standard Package | 36 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCC95-12IO1B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCC95-12IO1B is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MCC95-12IO1B is new and unused, you can buy MCC95-12IO1B IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCC95-12IO1B.
