| Manufacturer Part Number: | MC9S08PT60AVLD |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | S08 S08 Microcontroller IC 8-Bit 20MHz 60KB (60K x 8) FLASH 44-LQFP (10x10) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC9S08PT60AVLD Datasheet |
| Internal Part Number | 898-MC9S08PT60AVLD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | Mold Compound Chg 21/Dec/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | S08 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | S08 | |
| Core Size | 8-Bit | |
| Speed | 20MHz | |
| Connectivity | I²C, LIN, SPI, UART/USART | |
| Peripherals | LVD, POR, PWM, WDT | |
| Number of I/O | 37 | |
| Program Memory Size | 60KB (60K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 256 x 8 | |
| RAM Size | 4K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V | |
| Data Converters | A/D 16x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

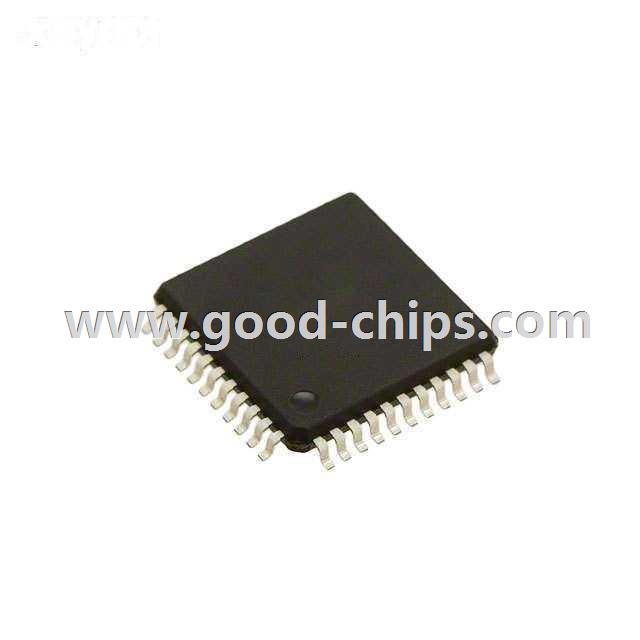

| Package / Case | 44-LQFP | |
| Supplier Device Package | 44-LQFP (10x10) | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC9S08PT60AVLD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC9S08PT60AVLD is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC9S08PT60AVLD is new and unused, you can buy MC9S08PT60AVLD NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC9S08PT60AVLD.
