Manufacturer Part Number: | MC68332ACEH25 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | Embedded - Microcontrollers |
Available Quantity: | 9404 Pieces |
Unit Price: | Quote by Email |
Description: | CPU32 M683xx Microcontroller IC 32-Bit 25MHz ROMless 132-PQFP (24.13x24.13) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MC68332ACEH25 Datasheet |
Internal Part Number | 898-MC68332ACEH25 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | M683xx | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontrollers | |
Manufacturer | Freescale Semiconductor - NXP | |
Series | M683xx | |
Packaging | Tray | |
Part Status | Active | |
Core Processor | CPU32 | |
Core Size | 32-Bit | |
Speed | 25MHz | |
Connectivity | EBI/EMI, SCI, SPI, UART/USART | |
Peripherals | POR, PWM, WDT | |
Number of I/O | 15 | |
Program Memory Size | - | |
Program Memory Type | ROMless | |
EEPROM Size | - | |
RAM Size | 2K x 8 | |
Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V | |
Data Converters | - | |
Oscillator Type | Internal | |
Operating Temperature | -40°C ~ 85°C (TA) | |

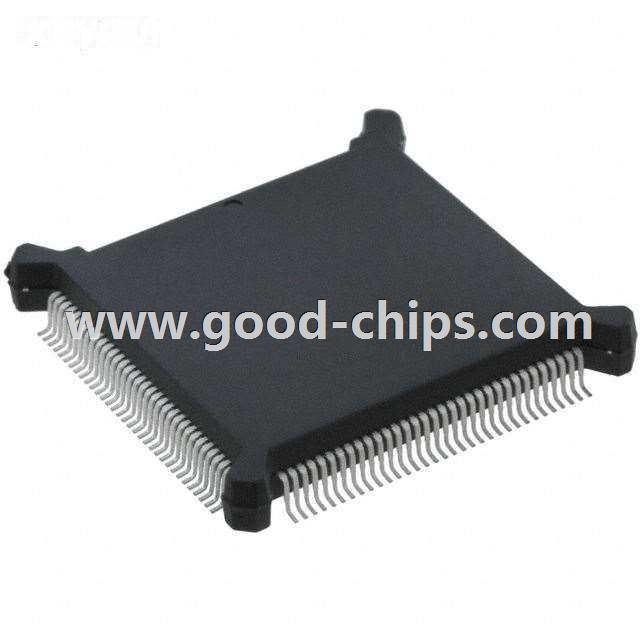

Package / Case | 132-BQFP Bumpered | |
Supplier Device Package | 132-PQFP (24.13x24.13) | |
Standard Package | 180 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MC68332ACEH25 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MC68332ACEH25 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC68332ACEH25 is new and unused, you can buy MC68332ACEH25 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC68332ACEH25.
