| Manufacturer Part Number: | MC56F82743VFM |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9075 Pieces |
| Unit Price: | Quote by Email |
| Description: | 56800EX 56F8xxx Microcontroller IC 32-Bit 100MHz 64KB (32K x 16) FLASH 32-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC56F82743VFM Datasheet |
| Internal Part Number | 898-MC56F82743VFM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Digital Signal Controllers Prod Summary | |
| Design Resources | Development Tool Selector | |
| PCN Assembly/Origin | Assembly Site Expansion 23/Jan/2015 Assembly Site Revision A 26/Feb/2015 | |
| Online Catalog | 56F8xxx | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | 56F8xxx | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | 56800EX | |
| Core Size | 32-Bit | |
| Speed | 100MHz | |
| Connectivity | I²C, SCI, SPI | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 26 | |
| Program Memory Size | 64KB (32K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 4K x 16 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V | |
| Data Converters | A/D 6x12b; D/A 2x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

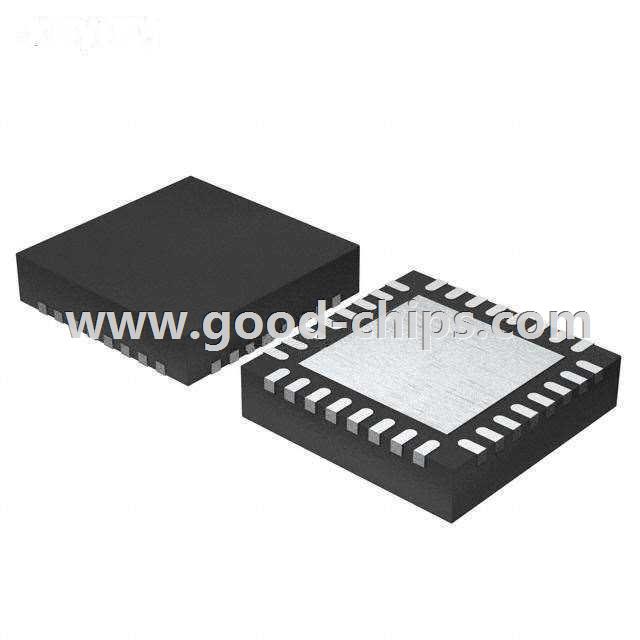

| Package / Case | 32-VFQFN Exposed Pad | |
| Supplier Device Package | 32-QFN (5x5) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC56F82743VFM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC56F82743VFM is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC56F82743VFM is new and unused, you can buy MC56F82743VFM NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC56F82743VFM.
