Manufacturer Part Number: | MC50XS4200BEKR2 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC SWITCH HISD 24V DUAL 32SOIC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MC50XS4200BEKR2 Datasheet |
Internal Part Number | 898-MC50XS4200BEKR2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Other | MPQ Update 13/Jan/2015 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Freescale Semiconductor - NXP | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 2 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | N-Channel | |
Interface | SPI | |
Voltage - Load | 8 V ~ 36 V | |
Voltage - Supply (Vcc/Vdd) | 3.3 V ~ 5 V | |
Current - Output (Max) | 1.2A | |
Rds On (Typ) | 50 mOhm | |
Input Type | - | |
Features | Slew Rate Controlled | |
Fault Protection | Open Load Detect, Over Temperature | |
Operating Temperature | -40°C ~ 125°C (TA) | |
Package / Case | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad | |

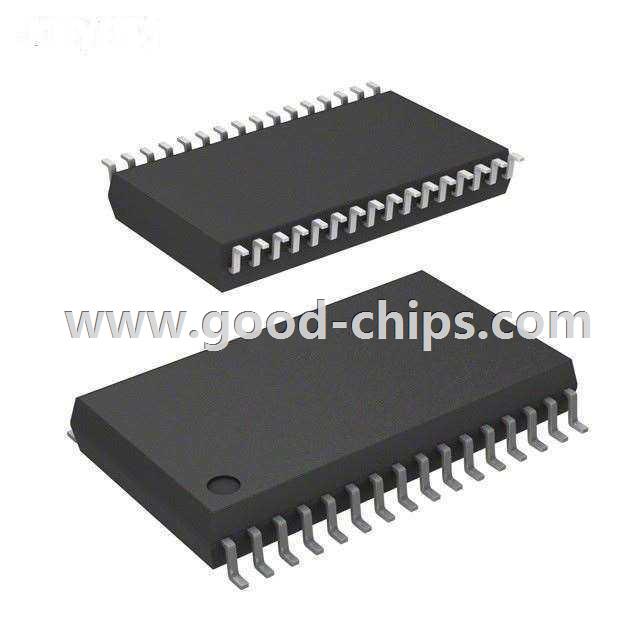

Supplier Device Package | 32-SOIC Exposed Pad | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MC50XS4200BEKR2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MC50XS4200BEKR2 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC50XS4200BEKR2 is new and unused, you can buy MC50XS4200BEKR2 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC50XS4200BEKR2.
