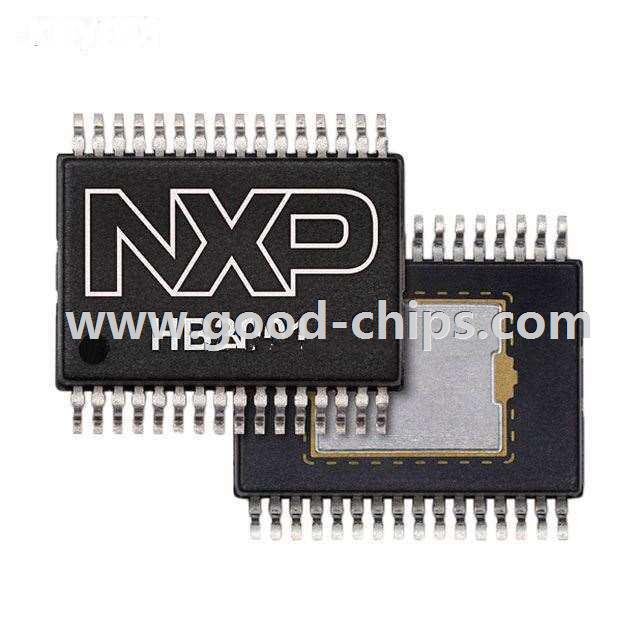

| Manufacturer Part Number: | MC33HB2001EKR2 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC HALF-BRIDGE DRIVER SPI 32SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC33HB2001EKR2 Datasheet |
| Internal Part Number | 898-MC33HB2001EKR2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Half Bridge (2) | |
| Applications | DC Motors, General Purpose | |
| Interface | SPI | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 125 mOhm LS (Max), 125 mOhm HS (Max) | |
| Current - Output / Channel | - | |
| Current - Peak Output | - | |
| Voltage - Supply | 5 V ~ 28 V | |
| Voltage - Load | 5 V ~ 28 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Features | Slew Rate Controlled | |
| Fault Protection | Over Temperature, Over Voltage, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | |
| Supplier Device Package | 32-SOIC Exposed Pad | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC33HB2001EKR2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC33HB2001EKR2 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC33HB2001EKR2 is new and unused, you can buy MC33HB2001EKR2 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC33HB2001EKR2.
