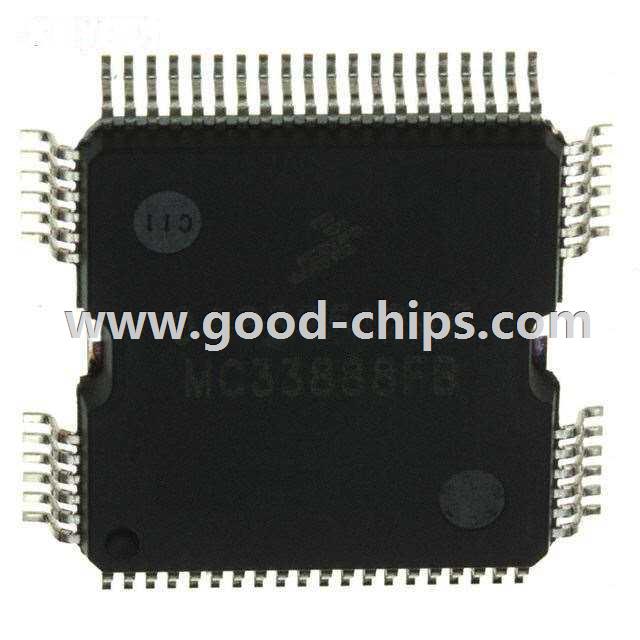

Manufacturer Part Number: | MC33888FBR2 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC SWITCH QUAD HI SIDE 64-QFP |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MC33888FBR2 Datasheet |
Internal Part Number | 898-MC33888FBR2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 23/Nov/2010 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Freescale Semiconductor - NXP | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Switch Type | General Purpose | |
Number of Outputs | 12 (4 High Side, 8 Low Side) | |
Ratio - Input:Output | - | |
Output Configuration | High Side or Low Side | |
Output Type | N-Channel | |
Interface | SPI | |
Voltage - Load | 6 V ~ 27 V | |
Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V | |
Current - Output (Max) | - | |
Rds On (Typ) | 10 mOhm, 40 mOhm, 600 mOhm | |
Input Type | - | |
Features | Watchdog Timer | |
Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Package / Case | 64-Power BQFP | |
Supplier Device Package | 64-PQFP (14x14) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MC33888FBR2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MC33888FBR2 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC33888FBR2 is new and unused, you can buy MC33888FBR2 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC33888FBR2.
