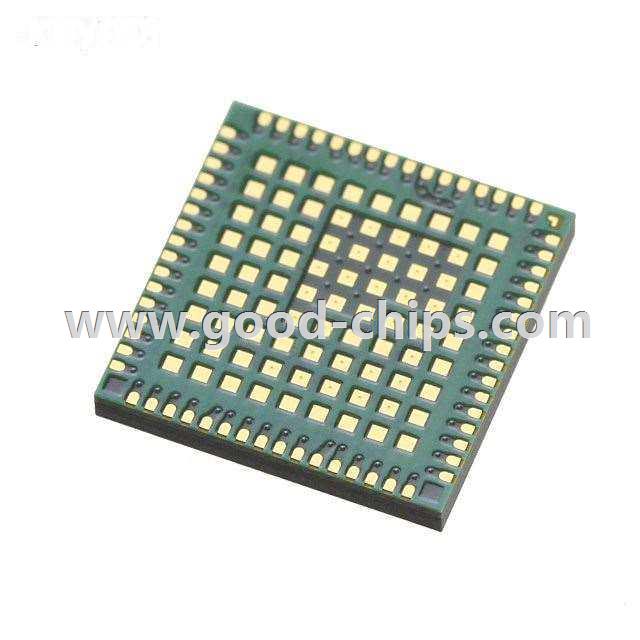

| Manufacturer Part Number: | MC13226VR2 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 145-TFLGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC13226VR2 Datasheet |
| Internal Part Number | 898-MC13226VR2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Obsolescence/ EOL | MC13224 and MC13226 Devices 11/Oct/2013 | |
| PCN Other | MPQ Update 13/Jan/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | TxRx + MCU | |
| RF Family/Standard | 802.15.4 | |
| Protocol | Zigbee® | |
| Modulation | O-QPSK | |
| Frequency | 2.4GHz | |
| Data Rate (Max) | 250kbps | |
| Power - Output | 4dBm | |
| Sensitivity | -100dBm | |
| Memory Size | 128kB Flash, 80kB ROM, 96kB SRAM | |
| Serial Interfaces | I²C, I²S, JTAG, SPI, UART | |
| GPIO | 64 | |
| Voltage - Supply | 2 V ~ 3.6 V | |
| Current - Receiving | 22mA ~ 24mA | |
| Current - Transmitting | 29mA | |
| Operating Temperature | -40°C ~ 105°C | |
| Package / Case | 145-TFLGA | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC13226VR2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC13226VR2 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC13226VR2 is new and unused, you can buy MC13226VR2 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC13226VR2.
