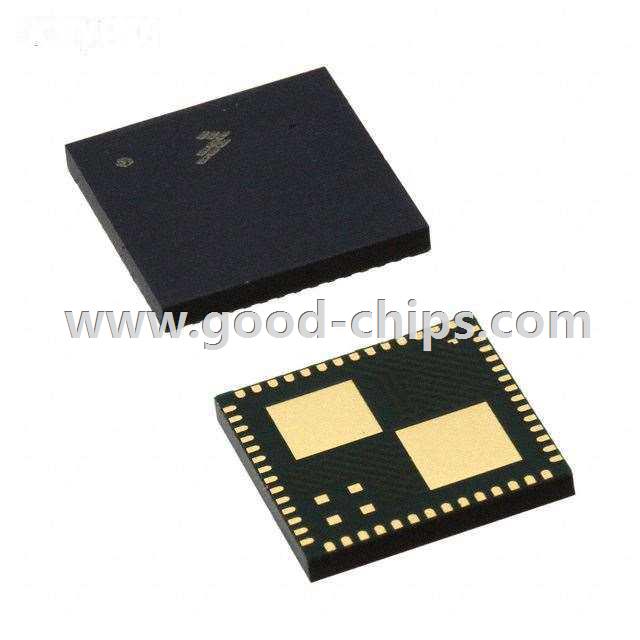

| Manufacturer Part Number: | MC12311CHN |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU General ISM < 1GHz 315MHz, 433MHz, 470MHz, 868MHz, 915MHz, 928MHz, 955MHz 60-VFLGA Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC12311CHN Datasheet |
| Internal Part Number | 898-MC12311CHN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Design/Specification | Copper Wire Conversion 27/May/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | General ISM < 1GHz | |
| Protocol | - | |
| Modulation | FSK, GFSK, GMSK, MSK, OOK | |
| Frequency | 315MHz, 433MHz, 470MHz, 868MHz, 915MHz, 928MHz, 955MHz | |
| Data Rate (Max) | 300kbps | |
| Power - Output | 17dBm | |
| Sensitivity | -120dBm | |
| Memory Size | 32kB Flash, 2kB RAM | |
| Serial Interfaces | SPI, UART | |
| GPIO | 34 | |
| Voltage - Supply | 1.8 V ~ 3.6 V | |
| Current - Receiving | 16mA | |
| Current - Transmitting | 16mA ~ 95mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 60-VFLGA Exposed Pad | |
| Standard Package | 1,300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC12311CHN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC12311CHN is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MC12311CHN is new and unused, you can buy MC12311CHN NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC12311CHN.
