Stocking distributor of Electronic Components
Email: [email protected]
| Manufacturer Part Number: | MC10H113FNG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | XOR (Exclusive OR) IC 4 Channel 20-PLCC (9x9) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MC10H113FNG Datasheet |
| Internal Part Number | 898-MC10H113FNG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 30/Sept/2009 | |
| PCN Assembly/Origin | Multiple Devices 21/Oct/2008 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | ON Semiconductor | |
| Series | 10H | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Logic Type | XOR (Exclusive OR) | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | -4.94 V ~ -5.46 V | |
| Current - Quiescent (Max) | - | |
| Current - Output High, Low | 50mA, 50mA | |
| Logic Level - Low | -1.48V | |
| Logic Level - High | -1.13V | |
| Max Propagation Delay @ V, Max CL | 1.8ns @ -5.2V, - | |
| Operating Temperature | 0°C ~ 75°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 20-PLCC (9x9) | |

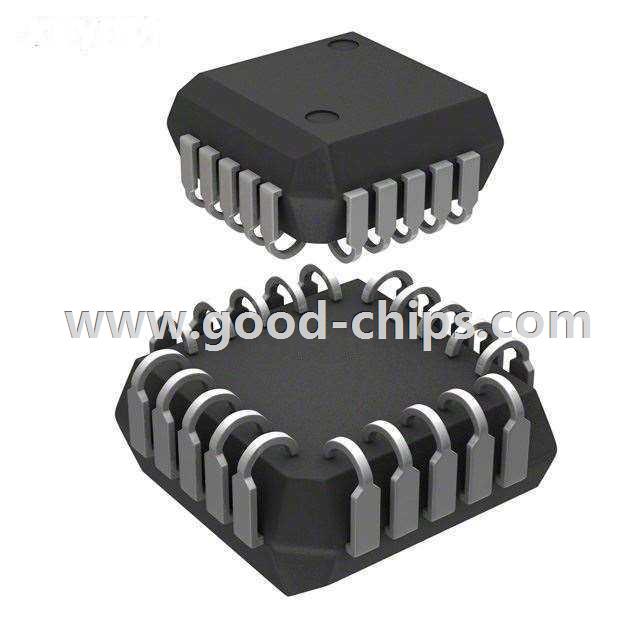

| Package / Case | 20-LCC (J-Lead) | |
| Standard Package | 46 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MC10H113FNG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MC10H113FNG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MC10H113FNG is new and unused, you can buy MC10H113FNG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MC10H113FNG.
