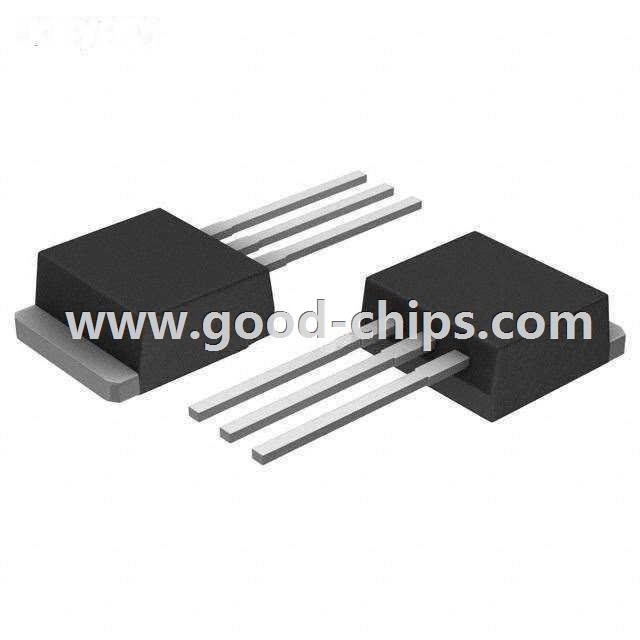

_418D-01.jpg)
| Manufacturer Part Number: | MBRB30H80CT-1G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Schottky 80V 15A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MBRB30H80CT-1G Datasheet |
| Internal Part Number | 898-MBRB30H80CT-1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 21/Jan/2010 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | SWITCHMODE™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 80V | |
| Current - Average Rectified (Io) (per Diode) | 15A | |
| Voltage - Forward (Vf) (Max) @ If | 780mV @ 15A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 250µA @ 80V | |
| Mounting Type | Through Hole | |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | |
| Supplier Device Package | I2PAK (TO-262) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MBRB30H80CT-1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MBRB30H80CT-1G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of MBRB30H80CT-1G is new and unused, you can buy MBRB30H80CT-1G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MBRB30H80CT-1G.
